            Use Qt in Debian for OpenCASCADE

            Posted on 2015-05-21 22:10 eryar 閱讀(2008) 評(píng)論(0)  編輯 收藏 引用 所屬分類: 2.OpenCASCADE

            Use Qt in Debian for OpenCASCADE

            eryar@163.com

            Recently several OpenCASCADE enthusiasts want to build my simple Qt demo about OpenCASCADE on ubuntu system, but could not compile it successfully. Because I only compiled the occQt in Windows system, do not try it in Linux system. I try to build it on Debian system, also have the same errors as follows:

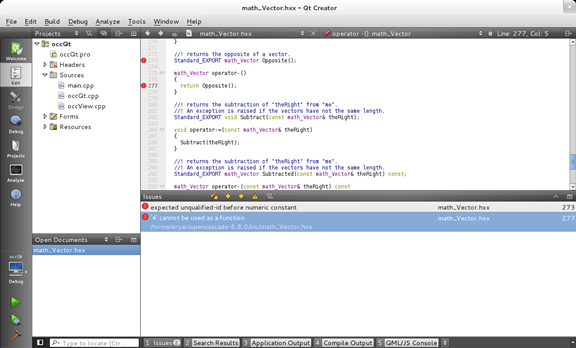

            wps_clip_image-9806

            Figure 1. Compile errors of Building occQt on Debian

            In order to use Qt5 in Debian7, you can input the following commands:

            1. Get Qt5 on Debian:

            sudo apt-get install qt5-default qt5-qmake qtbase5-dev-tools qtchooser

            2. Download the newest version of QtCreator from Qt website:

            http://www.qt.io/download-open-source/#section-6

            You can get the following file:

            qt-creator-opensource-linux-x86_64-3.4.0.run

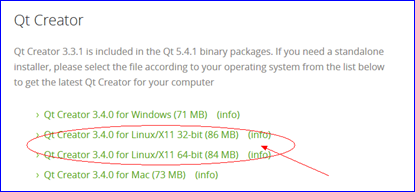

            wps_clip_image-22633

            Figure 2. Download Qt Creator for Linux

            3. Install QtCreator manually:

            Install Qt Creator manually by the following commands:

            chmod u+./qt-creator-opensource-linux-x86_64-3.4.0.run

            ./qt-creator-opensource-linux-x86_64-3.4.0.run

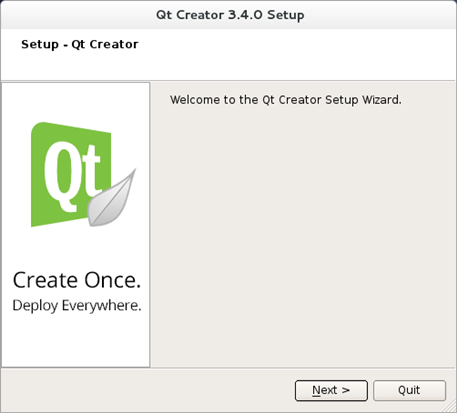

            wps_clip_image-16257

            Figure 3. Qt Creator Setup

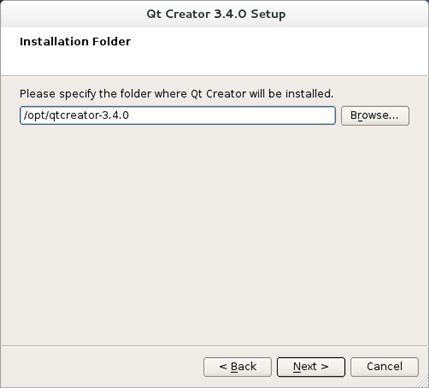

            wps_clip_image-3440

            Figure 4. Qt Creator Setup

            4. It is succeed When the Qt Creator Icon appears in the Applications.

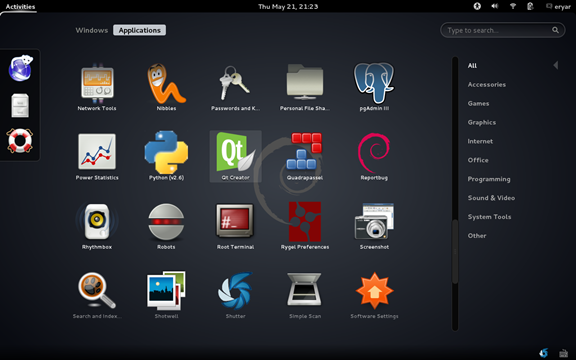

            wps_clip_image-26540

            Figure 5. Qt Creator in Applications

            5. I tried the math_Vector, it runs correctly, the code list as follows:

            #include <math_Vector.hxx>

            void TestVector(void)
            {
                math_Vector aVector(
            13);

                aVector.Init(
            1.0);
                aVector.Dump(std::cout);

                aVector
            = -aVector;
                aVector.Dump(std::cout);

                aVector
            = aVector.Opposite();
                aVector.Dump(std::cout);

            }

            int main()
            {
                TestVector();


            return 0;
            }

            The configuration of the test project as follows:

            TEMPLATE = app

            CONFIG
            += console

            CONFIG
            -= app_bundle

            CONFIG
            -= qt

            SOURCES
            += main.cpp

            include(deployment
            .pri)

            qtcAddDeployment()

            INCLUDEPATH
            += /home/eryar/opencascade-6.8.0/inc

            DEPENDPATH
            += /home/eryar/opencascade-6.8.0

            LIBS
            += -L/home/eryar/opencascade-6.8.0/lib/ -lTKernel -lTKMath

            The result shows:

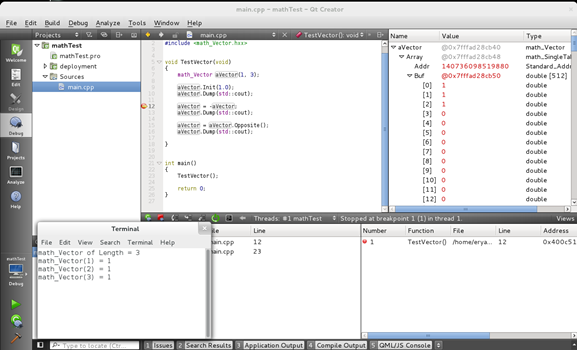

            wps_clip_image-25550

            Figure 6. Test math_Vector in Qt on Debian

            It can compile and run correctly, the compile error in occQt do not appear in the test program. you can also debug the code in Qt Creator. So use Qt Creator to program on Linux is very convenient.
