高級紋理映射技術（4）

發光映射

發光映射（glowing mapping）與黑暗映射正好相反，它對于模擬那些具有獨立于基礎貼圖的發光部分的物體很有用，比如模擬發光二極管、按鈕、建筑物內的燈光、太空船上的燈光等。發光映射應僅影響基礎貼圖上的發光區域，而不影響其他部分。因此需要對發光效果做加法，而不是做乘法。

pd3dDevice->SetTexture(0, g_base_texture);
pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX, 0);
pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1, D3DTA_TEXTURE);
pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP, D3DTOP_SELECTARG1);

pd3dDevice->SetTexture(1, g_dark_texture);
pd3dDevice->SetTextureStageState(1, D3DTSS_TEXCOORDINDEX, 0);
pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG1, D3DTA_TEXTURE);
pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG2, D3DTA_CURRENT);
pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_ADD);

運行效果：



細節映射

如果要模擬一塊粗糙的石灰泥墻壁，可以通過細節映射（detail mapping）來實現。實現過程是：將基礎貼圖（也就是第一張紋理）的顏色未經修改便作為第二個紋理操作階段中的第二個參數，然后通過D3DTOP_ADDSIGNED將灰色的細節紋理與基礎貼圖相加。這個操作本質上是做了一個加法，只是使用了有符號的顏色值來代替平時使用的無符號值。在對兩張紋理的像素顏色進行D3DTOP_ADDSIGNED操作時，它將參數的每個成分相加后再減去偏移量0.5，從而使有效值域變?yōu)?0.5 ~ 0.5。對一些比較舊的顯卡，當其不能支持D3DTOP_ADDSIGNED操作時，可以使用D3DTOP_MODULATE2X代替D3DTOP_ADDSIGNED操作進行模擬。

在細節貼圖中較亮的灰色紋理元素會使基礎貼圖變得更亮，而較暗的灰色紋理元素會使基礎貼圖變得更暗。由此可使物體呈現出粗糙的表面，從而使之看上去更為真實。示例代碼如下：

pd3dDevice->SetTexture(0, g_base_texture);
pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX,	0);
pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1,		D3DTA_TEXTURE);
pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP,		D3DTOP_SELECTARG1);
pd3dDevice->SetTexture(1, g_detail_texture);
pd3dDevice->SetTextureStageState(1, D3DTSS_TEXCOORDINDEX,	0);
pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG1,		D3DTA_TEXTURE);
pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG2,		D3DTA_CURRENT);
hr = pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_ADDSIGNED);
if(FAILED(hr))
	pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_MODULATE2X);

物體紋理

細節紋理

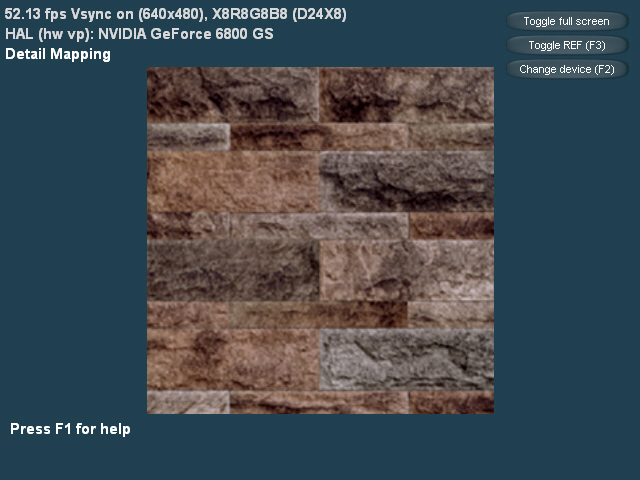

運行效果：



主程序:

#include "dxstdafx.h"
#include "resource.h"

#pragma warning(disable : 4127 4995 4996)

#define release_com(p)    do { if(p) { (p)->Release(); (p) = NULL; } } while(0)

struct sCustomVertex
{
    float x, y, z;
    float u, v;
};

#define D3DFVF_CUSTOM_VERTEX    (D3DFVF_XYZ | D3DFVF_TEX1)

#define IDC_TOGGLE_FULLSCREEN        1
#define IDC_TOGGLE_REF                2
#define IDC_CHANGE_DEVICE            3

#define BLEND_DARK                    1
#define BLEND_DARK_ANIM                2
#define BLEND_TEXTURE_DIFFUSE        3
#define BLEND_DARK_DIFFUSE            4
#define BLEND_GLOW                    5
#define BLEND_DETAIL                6

#define BLEND_INFO_DARK                L"Dark Blend"
#define BLEND_INFO_DARK_ANIM        L"Dark Blend Animation"
#define BLEND_INFO_TEXTURE_DIFFUSE    L"Blend Texture and Vertex Diffuse Color"
#define BLEND_INFO_DARK_DIFFUSE        L"Blend Texture and Vertex Diffuse Color and Dark"
#define BLEND_INFO_GLOW                L"Glow Mapping"
#define BLEND_INFO_DETAIL            L"Detail Mapping"

const D3DXCOLOR FONT_COLOR(0.85f, 0.85f, 0.85f, 1.0f);

CDXUTDialogResourceManager    g_dlg_resource_manager;
CD3DSettingsDlg                g_settings_dlg;
CDXUTDialog                    g_button_dlg;

IDirect3DVertexBuffer9*        g_vertex_buffer;
IDirect3DTexture9*            g_base_texture;
IDirect3DTexture9*            g_dark_texture;
IDirect3DTexture9*            g_detail_texture;

ID3DXFont*        g_font;
ID3DXSprite*    g_text_sprite;
bool            g_show_help = true;
D3DLIGHT9        g_light;
D3DMATERIAL9    g_material;
int                g_blend_flag = BLEND_DARK;
WCHAR            g_blend_info[128] = BLEND_INFO_DARK;

//--------------------------------------------------------------------------------------
// Rejects any devices that aren't acceptable by returning false
//--------------------------------------------------------------------------------------
bool CALLBACK IsDeviceAcceptable( D3DCAPS9* pCaps, D3DFORMAT AdapterFormat,
                                  D3DFORMAT BackBufferFormat, bool bWindowed, void* pUserContext )
{
    // Typically want to skip backbuffer formats that don't support alpha blending

    IDirect3D9* pD3D = DXUTGetD3DObject();

    if( FAILED( pD3D->CheckDeviceFormat( pCaps->AdapterOrdinal, pCaps->DeviceType, AdapterFormat,
                    D3DUSAGE_QUERY_POSTPIXELSHADER_BLENDING, D3DRTYPE_TEXTURE, BackBufferFormat ) ) )
        return false;

    // check whether device support multi textures render
    if(pCaps->MaxTextureBlendStages <= 1)
        return false;

    return true;
}


//--------------------------------------------------------------------------------------
// Before a device is created, modify the device settings as needed.
//--------------------------------------------------------------------------------------
bool CALLBACK ModifyDeviceSettings( DXUTDeviceSettings* pDeviceSettings, const D3DCAPS9* pCaps, void* pUserContext )
{
    // If video card does not support hardware vertex processing, then uses sofaware vertex processing.
    if((pCaps->DevCaps & D3DDEVCAPS_HWTRANSFORMANDLIGHT) == 0)
        pDeviceSettings->BehaviorFlags = D3DCREATE_SOFTWARE_VERTEXPROCESSING;

    static bool is_first_time = true;

    if(is_first_time)
    {
        is_first_time = false;

        // if using reference device, then pop a warning message box.
        if(pDeviceSettings->DeviceType == D3DDEVTYPE_REF)
            DXUTDisplaySwitchingToREFWarning();
    }

    return true;
}


//--------------------------------------------------------------------------------------
// Create any D3DPOOL_MANAGED resources here
//--------------------------------------------------------------------------------------
HRESULT CALLBACK OnCreateDevice( IDirect3DDevice9* pd3dDevice,
                                 const D3DSURFACE_DESC* pBackBufferSurfaceDesc,
                                 void* pUserContext )
{
    HRESULT    hr;

    V_RETURN(g_dlg_resource_manager.OnCreateDevice(pd3dDevice));
    V_RETURN(g_settings_dlg.OnCreateDevice(pd3dDevice));

    D3DXCreateFont(pd3dDevice, 18, 0, FW_BOLD, 1, FALSE, DEFAULT_CHARSET, OUT_DEFAULT_PRECIS, DEFAULT_QUALITY,
                   DEFAULT_PITCH | FF_DONTCARE, L"Arial", &g_font);

    V_RETURN(D3DXCreateTextureFromFile(pd3dDevice, L"wall.bmp",    &g_base_texture));
    V_RETURN(D3DXCreateTextureFromFile(pd3dDevice, L"dark.bmp",    &g_dark_texture));
    V_RETURN(D3DXCreateTextureFromFile(pd3dDevice, L"detail.bmp",  &g_detail_texture));

    // create vertex buffer and fill data

    sCustomVertex vertices[] =
    {
        { -3.0f, -3.0f,  0.0f,  0.0f, 1.0f},
        { -3.0f,  3.0f,  0.0f,  0.0f, 0.0f},
        {  3.0f, -3.0f,  0.0f,  1.0f, 1.0f},
        {  3.0f,  3.0f,  0.0f,  1.0f, 0.0f}
    };

    pd3dDevice->CreateVertexBuffer(sizeof(vertices), 0, D3DFVF_CUSTOM_VERTEX, D3DPOOL_MANAGED, &g_vertex_buffer, NULL);

    void* ptr;
    g_vertex_buffer->Lock(0, sizeof(vertices), (void**)&ptr, 0);
    memcpy(ptr, vertices, sizeof(vertices));
    g_vertex_buffer->Unlock();

    return S_OK;
}


//--------------------------------------------------------------------------------------
// Create any D3DPOOL_DEFAULT resources here
//--------------------------------------------------------------------------------------
HRESULT CALLBACK OnResetDevice( IDirect3DDevice9* pd3dDevice,
                                const D3DSURFACE_DESC* pBackBufferSurfaceDesc,
                                void* pUserContext )
{
    HRESULT hr;

    V_RETURN(g_dlg_resource_manager.OnResetDevice());
    V_RETURN(g_settings_dlg.OnResetDevice());
    V_RETURN(g_font->OnResetDevice());
    V_RETURN(D3DXCreateSprite(pd3dDevice, &g_text_sprite));

    // set dialog position and size

    g_button_dlg.SetLocation(pBackBufferSurfaceDesc->Width - 170, 0);
    g_button_dlg.SetSize(170, 170);

    // setup view matrix

    D3DXMATRIX mat_view;
    D3DXVECTOR3 eye(0.0f, 0.0f, -10.0f);
    D3DXVECTOR3  at(0.0f, 0.0f,  0.0f);
    D3DXVECTOR3  up(0.0f, 1.0f,  0.0f);

    D3DXMatrixLookAtLH(&mat_view, &eye, &at, &up);
    pd3dDevice->SetTransform(D3DTS_VIEW, &mat_view);

    // set projection matrix
    D3DXMATRIX mat_proj;
    float aspect = (float)pBackBufferSurfaceDesc->Width / pBackBufferSurfaceDesc->Height;
    D3DXMatrixPerspectiveFovLH(&mat_proj, D3DX_PI/4, aspect, 1.0f, 100.0f);
    pd3dDevice->SetTransform(D3DTS_PROJECTION, &mat_proj);

    // setup light

    ZeroMemory(&g_light, sizeof(D3DLIGHT9));

    g_light.Type      = D3DLIGHT_DIRECTIONAL;
    g_light.Diffuse.r = 0.5f;
    g_light.Diffuse.g = 0.5f;
    g_light.Diffuse.b = 0.5f;

    D3DXVECTOR3 light_dir(0, 0, 10);
    D3DXVec3Normalize((D3DXVECTOR3*) &g_light.Direction, &light_dir);

    // setup material

    ZeroMemory(&g_material, sizeof(D3DMATERIAL9));

    g_material.Ambient.r = 1.0f;
    g_material.Ambient.g = 1.0f;
    g_material.Ambient.b = 1.0f;
    g_material.Ambient.a = 1.0f;
    g_material.Diffuse.r = 0.7f;
    g_material.Diffuse.g = 0.7f;
    g_material.Diffuse.b = 0.7f;
    g_material.Diffuse.a = 0.5f;

    // set texture sample method
    pd3dDevice->SetSamplerState(0, D3DSAMP_MAGFILTER, D3DTEXF_LINEAR);
    pd3dDevice->SetSamplerState(0, D3DSAMP_MINFILTER, D3DTEXF_LINEAR);
    pd3dDevice->SetSamplerState(1, D3DSAMP_MAGFILTER, D3DTEXF_LINEAR);
    pd3dDevice->SetSamplerState(1, D3DSAMP_MINFILTER, D3DTEXF_LINEAR);

    return S_OK;
}

//--------------------------------------------------------------------------------------
// Release resources created in the OnResetDevice callback here
//--------------------------------------------------------------------------------------
void CALLBACK OnLostDevice( void* pUserContext )
{
    g_dlg_resource_manager.OnLostDevice();
    g_settings_dlg.OnLostDevice();
    g_font->OnLostDevice();

    release_com(g_text_sprite);
}


//--------------------------------------------------------------------------------------
// Release resources created in the OnCreateDevice callback here
//--------------------------------------------------------------------------------------
void CALLBACK OnDestroyDevice( void* pUserContext )
{
    g_dlg_resource_manager.OnDestroyDevice();
    g_settings_dlg.OnDestroyDevice();

    release_com(g_font);
    release_com(g_vertex_buffer);
    release_com(g_base_texture);
    release_com(g_dark_texture);
    release_com(g_detail_texture);
}

//--------------------------------------------------------------------------------------
// Handle updates to the scene
//--------------------------------------------------------------------------------------
void CALLBACK OnFrameMove( IDirect3DDevice9* pd3dDevice, double fTime, float fElapsedTime, void* pUserContext )
{
    HRESULT hr = S_OK;

    if(g_blend_flag == BLEND_DARK)
    {
        pd3dDevice->SetTexture(0, g_base_texture);
        pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP,            D3DTOP_SELECTARG1);

        pd3dDevice->SetTexture(1, g_dark_texture);
        pd3dDevice->SetTextureStageState(1, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG2,        D3DTA_CURRENT);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP,            D3DTOP_MODULATE);

        wcscpy(g_blend_info, BLEND_INFO_DARK);
    }
    else if(g_blend_flag == BLEND_DARK_ANIM)
    {
        pd3dDevice->SetTexture(0, g_base_texture);
        pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP,            D3DTOP_SELECTARG1);

        pd3dDevice->SetTexture(1, g_dark_texture);
        pd3dDevice->SetTextureStageState(1, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG2,        D3DTA_CURRENT);

        static double last_time = 0.0f;
        double interval = fTime - last_time;

        if(interval < 0.5f)
            pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_MODULATE);
        else if(interval > 0.5f && interval < 1.0f)
            pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_MODULATE2X);
        else if(interval > 1.0f && interval < 1.5f)
            pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_MODULATE4X);
        else if(interval > 1.5f)
            last_time = fTime;

        wcscpy(g_blend_info, BLEND_INFO_DARK_ANIM);
    }
    else if(g_blend_flag == BLEND_TEXTURE_DIFFUSE)
    {
        pd3dDevice->SetRenderState(D3DRS_LIGHTING, TRUE);
        pd3dDevice->SetRenderState(D3DRS_AMBIENT,  0x00808080);
        pd3dDevice->SetLight(0, &g_light);
        pd3dDevice->LightEnable(0, TRUE);
        pd3dDevice->SetMaterial(&g_material);

        pd3dDevice->SetTexture(0, g_base_texture);
        pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG2,        D3DTA_DIFFUSE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP,            D3DTOP_ADD);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP,            D3DTOP_DISABLE);

        wcscpy(g_blend_info, BLEND_INFO_TEXTURE_DIFFUSE);
    }
    else if(g_blend_flag == BLEND_DARK_DIFFUSE)
    {
        pd3dDevice->SetRenderState(D3DRS_LIGHTING, TRUE);
        pd3dDevice->SetRenderState(D3DRS_AMBIENT,  0x0080FFFF);
        pd3dDevice->SetLight(0, &g_light);
        pd3dDevice->LightEnable(0, TRUE);
        pd3dDevice->SetMaterial(&g_material);

        pd3dDevice->SetTexture(0, g_base_texture);
        pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG2,        D3DTA_DIFFUSE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP,            D3DTOP_MODULATE);

        pd3dDevice->SetTexture(1, g_dark_texture);
        pd3dDevice->SetTextureStageState(1, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG2,        D3DTA_CURRENT);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP,            D3DTOP_MODULATE);

        wcscpy(g_blend_info, BLEND_INFO_DARK_DIFFUSE);
    }
    else if(g_blend_flag == BLEND_GLOW)
    {
        pd3dDevice->SetTexture(0, g_base_texture);
        pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP,            D3DTOP_SELECTARG1);

        pd3dDevice->SetTexture(1, g_dark_texture);
        pd3dDevice->SetTextureStageState(1, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG2,        D3DTA_CURRENT);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP,            D3DTOP_ADD);

        wcscpy(g_blend_info, BLEND_INFO_GLOW);
    }
    else if(g_blend_flag == BLEND_DETAIL)
    {
        pd3dDevice->SetTexture(0, g_base_texture);
        pd3dDevice->SetTextureStageState(0, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(0, D3DTSS_COLOROP,            D3DTOP_SELECTARG1);

        pd3dDevice->SetTexture(1, g_detail_texture);
        pd3dDevice->SetTextureStageState(1, D3DTSS_TEXCOORDINDEX,    0);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG1,        D3DTA_TEXTURE);
        pd3dDevice->SetTextureStageState(1, D3DTSS_COLORARG2,        D3DTA_CURRENT);

        hr = pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_ADDSIGNED);

        if(FAILED(hr))
            pd3dDevice->SetTextureStageState(1, D3DTSS_COLOROP, D3DTOP_MODULATE2X);

        wcscpy(g_blend_info, BLEND_INFO_DETAIL);
    }
}

//--------------------------------------------------------------------------------------
// Render the helper information
//--------------------------------------------------------------------------------------
void RenderText()
{
    CDXUTTextHelper text_helper(g_font, g_text_sprite, 20);

    text_helper.Begin();

    // show frame and device states
    text_helper.SetInsertionPos(5, 5);
    text_helper.SetForegroundColor(FONT_COLOR);
    text_helper.DrawTextLine( DXUTGetFrameStats(true) );
    text_helper.DrawTextLine( DXUTGetDeviceStats() );

    // show other simple information
    text_helper.SetForegroundColor( D3DXCOLOR(1.0f, 1.0f, 1.0f, 1.0f) );
    text_helper.DrawTextLine(g_blend_info);

    // show helper information

    const D3DSURFACE_DESC* surface_desc = DXUTGetBackBufferSurfaceDesc();

    if(g_show_help)
    {
        text_helper.SetInsertionPos(10, surface_desc->Height - 18 * 10);
        text_helper.SetForegroundColor(FONT_COLOR);
        text_helper.DrawTextLine(L"Controls (F1 to hide):");

        text_helper.SetInsertionPos(40, surface_desc->Height - 18 * 9);
        text_helper.DrawTextLine(L"Quit: ESC");

        text_helper.DrawTextLine(L"");
        text_helper.DrawTextLine(L"1: Dark Blend");
        text_helper.DrawTextLine(L"2: Dark Blend Animation");
        text_helper.DrawTextLine(L"3: Blend Texture and Vertex Diffuse Color");
        text_helper.DrawTextLine(L"4: Blend Texture and Vertex Diffuse Color and Dark");
        text_helper.DrawTextLine(L"5: Glow Mapping");
        text_helper.DrawTextLine(L"6: Detail Mapping");
    }
    else
    {
        text_helper.SetInsertionPos(10, surface_desc->Height - 15 * 4);
        text_helper.SetForegroundColor( D3DXCOLOR(1.0f, 1.0f, 1.0f, 1.0f) );
        text_helper.DrawTextLine(L"Press F1 for help");
    }

    text_helper.End();
}

//--------------------------------------------------------------------------------------
// Render the scene
//--------------------------------------------------------------------------------------
void CALLBACK OnFrameRender( IDirect3DDevice9* pd3dDevice, double fTime, float fElapsedTime, void* pUserContext )
{
    HRESULT hr;

    if(g_settings_dlg.IsActive())
    {
        g_settings_dlg.OnRender(fElapsedTime);
        return;
    }

    // Clear the render target and the zbuffer
    V( pd3dDevice->Clear(0, NULL, D3DCLEAR_TARGET | D3DCLEAR_ZBUFFER, D3DCOLOR_ARGB(0, 32, 64, 80), 1.0f, 0) );

    // Render the scene
    if( SUCCEEDED( pd3dDevice->BeginScene() ) )
    {
        pd3dDevice->SetStreamSource(0, g_vertex_buffer, 0, sizeof(sCustomVertex));
        pd3dDevice->SetFVF(D3DFVF_CUSTOM_VERTEX);
        pd3dDevice->DrawPrimitive(D3DPT_TRIANGLESTRIP, 0, 2);

        RenderText();

        V(g_button_dlg.OnRender(fElapsedTime));

        V( pd3dDevice->EndScene() );
    }
}


//--------------------------------------------------------------------------------------
// Handle messages to the application
//--------------------------------------------------------------------------------------
LRESULT CALLBACK MsgProc( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam,
                          bool* pbNoFurtherProcessing, void* pUserContext )
{
    *pbNoFurtherProcessing = g_dlg_resource_manager.MsgProc(hWnd, uMsg, wParam, lParam);
    if(*pbNoFurtherProcessing)
        return 0;

    if(g_settings_dlg.IsActive())
    {
        g_settings_dlg.MsgProc(hWnd, uMsg, wParam, lParam);
        return 0;
    }

    *pbNoFurtherProcessing = g_button_dlg.MsgProc(hWnd, uMsg, wParam, lParam);
    if(*pbNoFurtherProcessing)
        return 0;

    return 0;
}


//--------------------------------------------------------------------------------------
// Handle keybaord event
//--------------------------------------------------------------------------------------
void CALLBACK OnKeyboardProc(UINT charater, bool is_key_down, bool is_alt_down, void* user_context)
{
    if(is_key_down)
    {
        switch(charater)
        {
        case VK_F1:
            g_show_help = !g_show_help;
            break;
        case 49:    // press key "1"
            g_blend_flag = BLEND_DARK;
            break;
        case 50:    // press key "2"
            g_blend_flag = BLEND_DARK_ANIM;
            break;
        case 51:    // press key "3"
            g_blend_flag = BLEND_TEXTURE_DIFFUSE;
            break;
        case 52:    // press key "4"
            g_blend_flag = BLEND_DARK_DIFFUSE;
            break;
        case 53:    // press key "5"
            g_blend_flag = BLEND_GLOW;
            break;
        case 54:    // press key "6"
            g_blend_flag = BLEND_DETAIL;
            break;
        }
    }
}

//--------------------------------------------------------------------------------------
// Handle events for controls
//--------------------------------------------------------------------------------------
void CALLBACK OnGUIEvent(UINT event, int control_id, CDXUTControl* control, void* user_context)
{
    switch(control_id)
    {
    case IDC_TOGGLE_FULLSCREEN:
        DXUTToggleFullScreen();
        break;

    case IDC_TOGGLE_REF:
        DXUTToggleREF();
        break;

    case IDC_CHANGE_DEVICE:
        g_settings_dlg.SetActive(true);
        break;
    }
}

//--------------------------------------------------------------------------------------
// Initialize dialogs
//--------------------------------------------------------------------------------------
void InitDialogs()
{
    g_settings_dlg.Init(&g_dlg_resource_manager);
    g_button_dlg.Init(&g_dlg_resource_manager);

    g_button_dlg.SetCallback(OnGUIEvent);

    int x = 35, y = 10, width = 125, height = 22;

    g_button_dlg.AddButton(IDC_TOGGLE_FULLSCREEN, L"Toggle full screen", x, y,         width, height);
    g_button_dlg.AddButton(IDC_TOGGLE_REF,          L"Toggle REF (F3)",     x, y += 24, width, height);
    g_button_dlg.AddButton(IDC_CHANGE_DEVICE,      L"Change device (F2)", x, y += 24, width, height, VK_F2);
}

//--------------------------------------------------------------------------------------
// Initialize everything and go into a render loop
//--------------------------------------------------------------------------------------
INT WINAPI WinMain( HINSTANCE, HINSTANCE, LPSTR, int )
{
    // Enable run-time memory check for debug builds.
#if defined(DEBUG) | defined(_DEBUG)
    _CrtSetDbgFlag( _CRTDBG_ALLOC_MEM_DF | _CRTDBG_LEAK_CHECK_DF );
#endif

    // Set the callback functions
    DXUTSetCallbackDeviceCreated( OnCreateDevice );
    DXUTSetCallbackDeviceReset( OnResetDevice );
    DXUTSetCallbackDeviceLost( OnLostDevice );
    DXUTSetCallbackDeviceDestroyed( OnDestroyDevice );
    DXUTSetCallbackMsgProc( MsgProc );
    DXUTSetCallbackFrameRender( OnFrameRender );
    DXUTSetCallbackFrameMove( OnFrameMove );
    DXUTSetCallbackKeyboard(OnKeyboardProc);

    // TODO: Perform any application-level initialization here
    InitDialogs();

    // Initialize DXUT and create the desired Win32 window and Direct3D device for the application
    DXUTInit( true, true, true ); // Parse the command line, handle the default hotkeys, and show msgboxes
    DXUTSetCursorSettings( true, true ); // Show the cursor and clip it when in full screen
    DXUTCreateWindow( L"Texture Color Blend" );
    DXUTCreateDevice( D3DADAPTER_DEFAULT, true, 640, 480, IsDeviceAcceptable, ModifyDeviceSettings );

    // Start the render loop
    DXUTMainLoop();

    // TODO: Perform any application-level cleanup here

    return DXUTGetExitCode();
}





下載示例工程


posted on 2008-05-20 14:47 lovedday 閱讀(1622) 評論(1)  編輯 收藏 引用

評論

# re: 高級紋理映射技術（4） 2008-05-20 15:45 w2001

寫得很好！向博主學習！  回復  更多評論


只有注冊用戶登錄后才能發表評論。
網站導航: 博客園   IT新聞   BlogJava   博問   Chat2DB   管理


公告

導航

統計

常用鏈接

隨筆分類(178)

3D游戲編程相關鏈接

搜索

最新評論

青青草原综合久久大伊人导航_色综合久久天天综合_日日噜噜夜夜狠狠久久丁香五月_热久久这里只有精品

    • <ins id="pjuwb"></ins>
    <blockquote id="pjuwb"><pre id="pjuwb"></pre></blockquote>

    <noscript id="pjuwb"></noscript>
          <sup id="pjuwb"><pre id="pjuwb"></pre></sup>

            <dd id="pjuwb"></dd>
            <abbr id="pjuwb"></abbr>

国产欧美高清|
欧美日韩国产综合一区二区|
亚洲精品日韩精品|
久久中文在线|
久久影院午夜片一区|
国产亚洲成精品久久|
亚洲午夜精品久久久久久浪潮|
日韩午夜免费|
欧美日本国产一区|
99re6这里只有精品|
中日韩在线视频|
欧美日韩在线电影|
99伊人成综合|
亚洲欧美日韩精品久久久久|
国产精品免费网站在线观看|
亚洲嫩草精品久久|
久久精品视频免费播放|
精品不卡一区|
欧美大片在线观看一区二区|
亚洲第一精品夜夜躁人人爽|
亚洲人午夜精品免费|
欧美日韩aaaaa|
日韩小视频在线观看专区|
亚洲综合国产激情另类一区|
国产精品亚洲综合天堂夜夜
|
亚洲国产精品嫩草影院|
美女在线一区二区|
亚洲日本中文字幕免费在线不卡|
av成人免费|
国产精品久久久久久久久免费桃花
|
欧美在线综合|
依依成人综合视频|
欧美成年人视频网站欧美|
亚洲激情网站|
亚洲免费在线看|
国产日韩欧美一区|
久久视频国产精品免费视频在线|
欧美激情一区三区|
亚洲一区一卡|
好吊一区二区三区|
欧美精品一区在线发布|
亚洲欧美日韩国产一区二区|
欧美xxx成人|
一区二区三区日韩在线观看|
国产三级欧美三级日产三级99|
久久亚洲风情|
在线视频免费在线观看一区二区|
久久久久久久久久久久久久一区|
亚洲精品欧洲|
亚洲欧美日韩视频一区|
亚洲大胆人体视频|
欧美一区二区观看视频|
亚洲国产乱码最新视频|
欧美视频官网|
久久天堂精品|
亚洲深夜影院|
欧美国产一区二区三区激情无套|
亚洲你懂的在线视频|
亚洲春色另类小说|
国产精品视频一二三|
女仆av观看一区|
欧美影院在线播放|
一本久久综合亚洲鲁鲁|
蜜桃久久精品一区二区|
午夜欧美理论片|
亚洲毛片在线|
激情校园亚洲|
国产伦精品免费视频
|
一本一本久久a久久精品综合麻豆|
久久久久久色|
亚洲欧美不卡|
一区二区三区国产在线观看|
亚洲国产aⅴ天堂久久|
国产日韩欧美一区二区三区四区|
欧美久久视频|
美女主播一区|
久久久之久亚州精品露出|
亚洲免费一在线|
一区二区三区四区在线|
亚洲经典三级|
嫩草成人www欧美|
欧美在线一级va免费观看|
亚洲午夜精品一区二区三区他趣
|
国产精品久久一卡二卡|
欧美精彩视频一区二区三区|
久久一区精品|
久久久久国色av免费观看性色|
亚洲伊人网站|
亚洲婷婷在线|
一区二区三区高清|
99精品福利视频|
日韩视频一区二区在线观看
|
黑丝一区二区|
国产中文一区二区三区|
国产乱理伦片在线观看夜一区|
欧美午夜精品理论片a级大开眼界|
欧美国产一区二区|
欧美高清视频一区|
欧美激情亚洲自拍|
欧美另类在线观看|
欧美日韩国产综合视频在线观看中文|
欧美黄污视频|
欧美日韩国产va另类|
欧美日韩国产一级|
欧美视频你懂的|
国产精品毛片在线看|
国产精品免费网站|
国产亚洲福利|
激情亚洲一区二区三区四区|
樱花yy私人影院亚洲|
亚洲激情黄色|
日韩性生活视频|
亚洲图中文字幕|
欧美一区二区在线免费播放|
久久久精品网|
欧美激情亚洲一区|
91久久在线|
亚洲一区二区在线视频
|
在线视频欧美一区|
亚洲一区三区在线观看|
欧美在线播放高清精品|
久久久天天操|
亚洲成色999久久网站|
日韩小视频在线观看专区|
亚洲影视在线播放|
久久久国产午夜精品|
欧美福利视频一区|
国产精品久久波多野结衣|
国产一区二区在线观看免费|
亚洲福利精品|
亚洲午夜羞羞片|
欧美一级在线播放|
蜜桃av一区|
99精品国产在热久久婷婷|
午夜影院日韩|
欧美激情欧美狂野欧美精品|
国产精品视频专区|
亚洲国产毛片完整版|
亚洲自拍电影|
免费在线观看日韩欧美|
一本在线高清不卡dvd|
久久久99精品免费观看不卡|
欧美剧在线免费观看网站|
国产日韩精品视频一区|
亚洲日本成人女熟在线观看|
午夜一区二区三区在线观看|
欧美激情精品久久久六区热门|
亚洲一区激情|
欧美国产视频一区二区|
国产一本一道久久香蕉|
一本色道久久综合狠狠躁篇的优点
|
久久久亚洲精品一区二区三区|
亚洲国产精品久久久久秋霞不卡
|
欧美福利在线观看|
亚洲天堂av综合网|
欧美+日本+国产+在线a∨观看|
国产精品美女午夜av|
91久久精品国产91久久|
欧美伊人影院|
99视频一区二区三区|
欧美超级免费视 在线|
国产在线观看一区|
亚洲免费视频成人|
亚洲日本欧美|
久久天堂av综合合色|
国产日韩精品久久久|
亚洲一区二区av电影|
亚洲激情在线|
麻豆精品视频在线观看|
国产亚洲在线观看|
亚洲欧美中文日韩v在线观看|
亚洲高清在线精品|
久久久www成人免费精品|
国产欧美日韩综合|
小嫩嫩精品导航|
中文国产一区|
欧美午夜宅男影院在线观看|
亚洲伦理网站|
亚洲国产成人av|
免费在线观看日韩欧美|
亚洲国产高清自拍|
免费视频一区|
久久久精品一区|
国产一区视频在线看|
欧美在线短视频|
亚洲尤物在线|
国产免费观看久久|
欧美一级二区|
午夜精品剧场|
国产午夜久久|
久久久亚洲高清|
久久久久国产一区二区三区|
国内精品久久久久影院 日本资源
国内精品久久久久伊人av
|
久久久久欧美|
韩国v欧美v日本v亚洲v|
久久久免费观看视频|
久久精品夜色噜噜亚洲a∨|
国外精品视频|
中文在线资源观看网站视频免费不卡|
亚洲国产合集|
