            PDMS PML二次開發(fā)-Pipe Flow Indicator

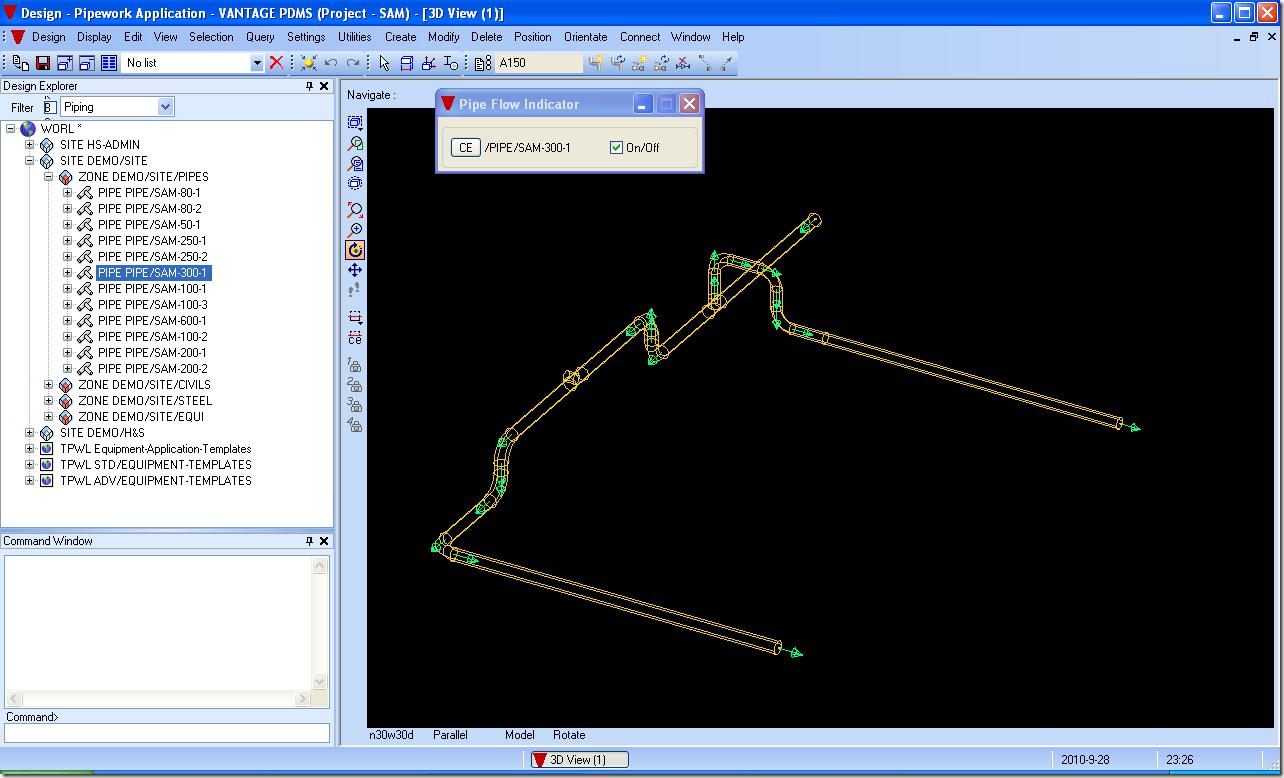

            AVEVA PDMS中管路流向顯示程序:

            pipe flow



            PML程序源代碼如下:

            ---------------------------------------------------------------------------------
            --
            -- (c) Copyright 2010 to Current Year
            -- Shanghai Hoto Petrochemical Engineering Co., Ltd
            -- eryar All rights reserved.
            --
            --  File:          pipeflow.pmlfrm
            --  Type:          Form Definition
            --  Group:         General Application
            --  Keyword:       GEN
            --  Module:        DESIGN
            --
            -- Author:          eryar@163.com
            -- Created:         2010-09-17 15:15
            --
            -- Description:     Indicate pipe media flow direction.
            --
            ---------------------------------------------------------------------------------
            setup form
            !!pipeflow

            !This.FormTitle         =       'Pipe Flow Indicator'

            !This.Cancelcall        =       '!This.close()'

            !This.FormRevision      =       '1.0v'

                    frame .pipeFlowFrame
                            button  .bCE
            'CE'
                            para    .ceName                 at      xmax            ymin    width
            16 line 1

                            toggle  .turn
            'On/Off'        at      xmax            ymin
                    exit

            exit

            ---------------------------------------------------------------------------------
            --
            -- Method:      pipeflow()
            --
            -- Description:
            --
            -- Method Type: Function/Procedure
            -- Arguments:
            --   [#] [R/RW] [Data Type] [Description]
            -- Return:
            --   [Data Type] [Description]
            --
            ---------------------------------------------------------------------------------
            define method .pipeflow()

            !this.bCE.callback      =       '!this.getCE()'

            !this.turn.callback     =       '!this.apply()'
            endmethod
            ---------------------------------------------------------------------------------
            --
            -- Method:      getCE()
            --
            -- Description:  get current element for indicate pipe media flow
            --
            -- Method Type: Function/Procedure
            -- Arguments:
            --   [#] [R/RW] [Data Type] [Description]
            -- Return:
            --   [Data Type] [Description]
            --
            ---------------------------------------------------------------------------------
            define method .getCE()

            --

            !currentElement =       ce

            !elementName    =       !currentElement.Name

            !this.ceName.val=       !elementName

            endmethod
            ---------------------------------------------------------------------------------
            --
            -- Method:      apply()
            --
            -- Description:
            --
            -- Method Type: Function/Procedure
            -- Arguments:
            --   [#] [R/RW] [Data Type] [Description]
            -- Return:
            --   [Data Type] [Description]
            --
            ---------------------------------------------------------------------------------
            define method .apply()

            -- remember where we came in

            !memory =       ce


            -- turn on pipe media flow

            if(!this.turn.val) then

            -- collect all branches
                            var
            !branches collect all bran for $!this.ceName.val


            do !i index !branches

            -- handle every branch

            !branch =       !branches[$!i].dbref()

            !hPos   =       !branch.hPosition

            !tPos   =       !branch.tPosition

            !hDir   =       !branch.hDirection

            !tDir   =       !branch.tDirection

            !hBore  =       !branch.hBore

            !tDir   =       !tDir.Opposite()

            !arrow  =       !hBore.real() * 2


            -- add two aid arrow at head and tail
                                    AID ARROW AT $
            !hPos DIR $!hDir HEIGHT $!arrow PROPORTION 0.35
                                    AID ARROW AT $
            !tPos DIR $!tDir HEIGHT $!arrow PROPORTION 0.35


            -- add aid arrow on elbow
                                    var
            !elbows collect all elbow for $!branch

            do !j index !elbows

            !elbow          =       !elbows[$!j].dbref()

            !arrive         =       !elbow.Arrive

            !leave          =       !elbow.Leave
                                            $
            !elbow
                                            var
            !arrivePos  P$!<arrive>     position wrt world
                                            handle (
            2,201)

            -- element does not have attribute PPOS
                                                    skip
                                            endhandle
                                            var
            !leavePos   P$!<leave>      position wrt world
                                            handle (
            2,201)

            -- element does not have attribute PPOS
                                                    skip
                                            endhandle
                                            var
            !arriveDir  P$!<arrive>     direction wrt world
                                            var
            !leaveDir   P$!<leave>      direction wrt world

            !arriveDir      =       !arriveDir.Direction().Opposite().string()

            --
                                            AID ARROW AT $
            !arrivePos DIR $!arriveDir  HEIGHT $!arrow PROPORTION 0.35
                                            AID ARROW AT $
            !leavePos  DIR $!leaveDir   HEIGHT $!arrow PROPORTION 0.35
                                    enddo


            -- add aid arrow on valve
                                    var
            !valves collect all valve for $!branch

            do !h index !valves

            !valve  =       !valves[$!h].dbref()

            !vPos   =       !valve.Position

            --
                                            AID ARROW AT $
            !vPos DIR $!arriveDir  HEIGHT $!hBore PROPORTION 0.8
                                    enddo


            -- add aid arrow on tubi
                                    var
            !tubes collect all tubi for $!branch

            do !k index !tubes

            !tube   =       !tubes[$!k].dbref()

            !itsLen =       !tube.itLength

            !itsPos =       !tube.itPosition
                                    enddo
                            enddo

            else

            -- turn off pipe media flow, clear all aid arrow
                            AID CLEAR ALL
                    endif


            -- go back

            !!ce    =       !memory
            endmethod
            ---------------------------------------------------------------------------------
            --
            -- Method:      close()
            --
            -- Description:
            --
            -- Method Type: Function/Procedure
            -- Arguments:
            --   [#] [R/RW] [Data Type] [Description]
            -- Return:
            --   [Data Type] [Description]
            --
            ---------------------------------------------------------------------------------
            define method .close()

            -- after close the form, clear all aid arrow
                    AID CLEAR ALL
            endmethod
            ---------------------------------------------------------------------------------
