            OpenGL中用FreeImage

            FreeImage is an Open Source library project for developers who would like to support popular graphics image formats like PNG, BMP, JPEG, TIFF and others as needed by today's multimedia applications. FreeImage is easy to use, fast, multithreading safe, compatible with all 32-bit versions of Windows, and cross-platform (works both with Linux and Mac OS X).
            測試過png,bmp,jpg,tga。

            TextureManager.h
            //**********************************************
            //Singleton Texture Manager class
            //Written by Ben English
            //benjamin.english@oit.edu
            //
            //For use with OpenGL and the FreeImage library
            //**********************************************

            #ifndef TextureManager_H
            #define TextureManager_H

            #include
            <gl/glew.h>
            #include
            "FreeImage.h"
            #include
            <map>

            class TextureManager
            {
            public:

            static TextureManager* Inst();

            virtual ~TextureManager();


            //load a texture an make it the current texture

            //if texID is already in use, it will be unloaded and replaced with this texture
                bool LoadTexture(const char* filename,    //where to load the file from
                    const unsigned int texID,            //arbitrary id you will reference the texture by

            //does not have to be generated with glGenTextures
                    GLenum image_format = GL_RGB,        //format the image is in
                    GLint internal_format = GL_RGB,        //format to store the image in
                    GLint level = 0,                    //mipmapping level
                    GLint border = 0);                    //border size


            //free the memory for a texture
                bool UnloadTexture(const unsigned int texID);


            //set the current texture
                bool BindTexture(const unsigned int texID);


            //free all texture memory
                void UnloadAllTextures();

            protected:
                TextureManager();
                TextureManager(
            const TextureManager& tm);
                TextureManager
            & operator=(const TextureManager& tm);


            static TextureManager* m_inst;
                std::map
            <unsigned int, GLuint> m_texID;
            }
            ;

            #endif

            TextureManager.cpp
            //**********************************************
            //Singleton Texture Manager class
            //Written by Ben English
            //benjamin.english@oit.edu
            //
            //For use with OpenGL and the FreeImage library
            //**********************************************

            #include
            "TextureManager.h"

            TextureManager
            * TextureManager::m_inst(0);

            TextureManager
            * TextureManager::Inst()
            {

            if(!m_inst)
                    m_inst
            = new TextureManager();


            return m_inst;
            }


            TextureManager::TextureManager()
            {

            // call this ONLY when linking with FreeImage as a static library
                #ifdef FREEIMAGE_LIB
                    FreeImage_Initialise();

            #endif
            }


            //these should never be called
            //TextureManager::TextureManager(const TextureManager& tm){}
            //TextureManager& TextureManager::operator=(const TextureManager& tm){}

            TextureManager::
            ~TextureManager()
            {

            // call this ONLY when linking with FreeImage as a static library
                #ifdef FREEIMAGE_LIB
                    FreeImage_DeInitialise();

            #endif

                UnloadAllTextures();
                m_inst
            = 0;
            }


            bool TextureManager::LoadTexture(const char* filename, const unsigned int texID, GLenum image_format, GLint internal_format, GLint level, GLint border)
            {

            //image format
                FREE_IMAGE_FORMAT fif = FIF_UNKNOWN;

            //pointer to the image, once loaded
                FIBITMAP *dib(0);

            //pointer to the image data
                BYTE* bits(0);

            //image width and height
                unsigned int width(0), height(0);

            //OpenGL's image ID to map to
                GLuint gl_texID;


            //check the file signature and deduce its format
                fif = FreeImage_GetFileType(filename, 0);

            //if still unknown, try to guess the file format from the file extension
                if(fif == FIF_UNKNOWN)
                    fif
            = FreeImage_GetFIFFromFilename(filename);

            //if still unkown, return failure
                if(fif == FIF_UNKNOWN)

            return false;


            //check that the plugin has reading capabilities and load the file
                if(FreeImage_FIFSupportsReading(fif))
                    dib
            = FreeImage_Load(fif, filename);

            //if the image failed to load, return failure
                if(!dib)

            return false;


            //retrieve the image data
                bits = FreeImage_GetBits(dib);

            //get the image width and height
                width = FreeImage_GetWidth(dib);
                height
            = FreeImage_GetHeight(dib);

            //if this somehow one of these failed (they shouldn't), return failure
                if((bits == 0|| (width == 0|| (height == 0))

            return false;


            //if this texture ID is in use, unload the current texture
                if(m_texID.find(texID) != m_texID.end())
                    glDeleteTextures(
            1&(m_texID[texID]));


            //generate an OpenGL texture ID for this texture
                glGenTextures(1&gl_texID);

            //store the texture ID mapping
                m_texID[texID] = gl_texID;

            //bind to the new texture ID
                glBindTexture(GL_TEXTURE_2D, gl_texID);

            //store the texture data for OpenGL use
                glTexImage2D(GL_TEXTURE_2D, level, internal_format, width, height,
                    border, image_format, GL_UNSIGNED_BYTE, bits);


            //Free FreeImage's copy of the data
                FreeImage_Unload(dib);


            //return success
                return true;
            }


            bool TextureManager::UnloadTexture(const unsigned int texID)
            {

            bool result(true);

            //if this texture ID mapped, unload it's texture, and remove it from the map
                if(m_texID.find(texID) != m_texID.end())

            {
                    glDeleteTextures(
            1&(m_texID[texID]));
                    m_texID.erase(texID);
                }


            //otherwise, unload failed
                else

            {
                    result
            = false;
                }



            return result;
            }


            bool TextureManager::BindTexture(const unsigned int texID)
            {

            bool result(true);

            //if this texture ID mapped, bind it's texture as current
                if(m_texID.find(texID) != m_texID.end())
                    glBindTexture(GL_TEXTURE_2D, m_texID[texID]);

            //otherwise, binding failed
                else
                    result
            = false;


            return result;
            }


            void TextureManager::UnloadAllTextures()
            {

            //start at the begginning of the texture map
                std::map<unsigned int, GLuint>::iterator i = m_texID.begin();


            //Unload the textures untill the end of the texture map is found
                while(i != m_texID.end())
                    UnloadTexture(i
            ->first);


            //clear the texture map
                m_texID.clear();
            }

            Main.cpp
            /************************************************************************/
            /*Brief:  Test all kinds of Textures in OpenGL                          */
            /*Author: tiny                                                          */
            /*Date:   09/29/2008                                                    */
            /************************************************************************/
            #include
            "TextureManager.h"
            #include
            <gl/glew.h>
            #include
            <gl/glut.h>

            //全局貼圖ID
            GLuint texture[1];

            void init()
            {

            //將2D貼圖狀態打開
                glEnable( GL_TEXTURE_2D );


            //單件貼圖管理

            //如果加載帶路徑的文件最好選用.\\這樣的格式
                TextureManager::Inst()->LoadTexture( "OpenGL_his.jpg", texture[0] );


            //線性過濾一定要放到加載紋理的后面
                glTexParameteri(GL_TEXTURE_2D,GL_TEXTURE_MIN_FILTER,GL_LINEAR);    // 線性濾波
                glTexParameteri(GL_TEXTURE_2D,GL_TEXTURE_MAG_FILTER,GL_LINEAR);    // 線性濾波

                glClearColor(
            0.50.50.50.5 );
            }


            void display()
            {
                glClear( GL_COLOR_BUFFER_BIT
            | GL_DEPTH_BUFFER_BIT );


            //綁定紋理
                TextureManager::Inst()->BindTexture( texture[0] );


            //渲染
                glBegin( GL_QUADS );
                glTexCoord2d(
            00 ); glVertex3f( -5.0f-5.0f0.0f );
                glTexCoord2d(
            01 ); glVertex3f( -5.0f5.0f0.0f );
                glTexCoord2d(
            11 ); glVertex3f( 5.0f5.0f0.0f );
                glTexCoord2d(
            10 ); glVertex3f( 5.0f-5.0f0.0f );
                glEnd();
                glFlush();

                glutSwapBuffers();
            }


            void reshape( int w, int h )
            {
                glViewport(
            00, GLsizei( w ), GLsizei( h ) );
                glMatrixMode( GL_PROJECTION );
                glLoadIdentity();
                gluPerspective(
            45, ( GLdouble ) w / ( GLdouble ) h, 1.0f1000.0f );
                glMatrixMode( GL_MODELVIEW );
                glLoadIdentity();
                gluLookAt(
            0020000010 );
            }


            void keyboard( unsigned char key, int x, int y )
            {

            if ( key == 27 )

            {

            //釋放掉貼圖,防止內存泄露
                    TextureManager::Inst()->UnloadTexture( texture[0] );
                    exit(
            0 );
                }


            }



            int main( int argc, char *argv[] )
            {
                glutInit(
            &argc, argv );
                glutInitDisplayMode( GLUT_DOUBLE
            | GLUT_RGBA | GLUT_DEPTH );
                glutInitWindowPosition(
            300300 );
                glutInitWindowSize(
            400300 );
                glutCreateWindow(
            "OpenGL Texture Test" );
                init();
                glutReshapeFunc( reshape );
                glutKeyboardFunc( keyboard );
                glutDisplayFunc( display );
                glutMainLoop();


            return 0;
            }

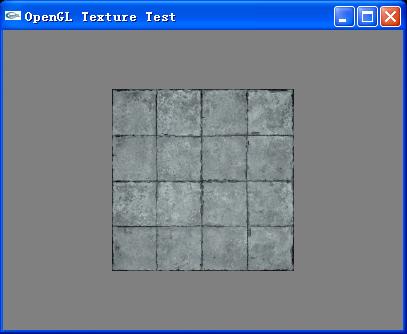

            bmp效果圖:

            tga效果圖:

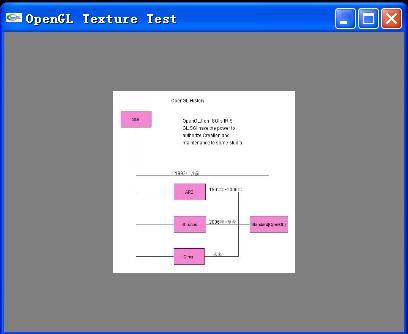

            jpg效果圖:

            png效果圖:

            有的圖的效果不是想要的,可能和RGB的順序有關。

            posted on 2008-09-29 13:14 brilyf 閱讀(4380) 評論(5)  編輯 收藏 引用

            評論

            # re: OpenGL中用FreeImage  回復  更多評論

            不要意思,png和tga都是帶有alpha通道的,必須指定象素格式類型,如下:
            TextureManager::Inst()->LoadTexture( "snowman.png", texture[0], GL_BGRA );
            2008-09-29 13:48 | brilyf

            # re: OpenGL中用FreeImage  回復  更多評論

            有人在嗎?究竟怎樣弄才能的到你這個效果呢?
            2009-05-08 20:44 | hello opengl

            # re: OpenGL中用FreeImage  回復  更多評論

            當我載入多個紋理時 只有1個有用...!!!!!!!!!!!
            2012-01-27 11:15 | hrlqqq

            # re: OpenGL中用FreeImage  回復  更多評論

            載入多個紋理時 只有一個有用...

            代碼有問題??
            2012-01-27 11:15 | hrlqqq

            # re: OpenGL中用FreeImage  回復  更多評論

            是的,我也是驗證了很久,載入多個紋理時,只有最后載入的那個紋理才有用,前面的都無法使用。texture[i]沒有意義,無法通過使用texture[i]來bind指定的那個紋理
            2012-05-17 12:27 | LHZorro
