The Basic Direct3D Program

We won't be making a "Hello World!" application for Direct3D.  We will assume that Direct3D is not a language on its own (which it isn't).  Instead, we will start by filling our window with blue.  For this we have four steps:

1.  Create global variables and function prototypes
2.  Create a function to initialize Direct3D and create the Direct3D Device
3.  Create a function to render a frame
4.  Create a function to close Direct3D

Let's go over each function and its parts, then look at the whole picture and how to plug it in to your windows program.

我們不會去寫一個Direct3D的“Hello World”。因?yàn)槲覀冎?/span>Direct3D不是一門新的語言，取而代之的是，我們要去寫一個藍色背景的WINDOWS窗體，具體步驟如下：

1.創建全局變量和函數原型

2．寫一個函數來初始化Direct3D以及創建Direct3D設備

3．寫一個函數來渲染幀

4．寫一個關閉Dierect3D的函數

下面讓我們來看看各個函數及其部分細節

，以及如何把它們嵌入到我們的Windows 程序中。

1.  創建全局變量和函數原型

We need to add a few things to the top of our program before we start working with Direct3D in the first place.  Let's take a look at these and see what they are.

在主程序開始之前我們要添加一些Direct3D的引用和全局變量聲明，我們看看下面的代碼：





#include <d3d9.h>

This includes the Direct3D 9 header file.  This consists of various declarations to the actual methods contained in the Direct3D library.

這一句包含Direct3D9的頭文件，這里是我們用到的Direct3D庫里面的類啊函數啊神馬的聲明。



#pragma comment (lib, "d3d9.lib")

This includes the Direct3D 9 library file.  The #pragma comment directive places a certain piece of information in your project's object file.  With our first paramter, lib, we indicate that we want to add a library file to the project.  We then specify which file, "d3d9.lib".

這一句包含了Direct3D的庫文件。“#pragma comment”這個命令是用來在你的項目中指定包含一個靜態庫文件的。他的第一個參數”lib”表明要引入到項目的是一個靜態庫文件，然后第二個參數是文件名，這里我們用”d3d9.lib”



LPDIRECT3D9 d3d;

This variable is a long pointer to Direct3D.  What this means is that we will create a class called iDirect3D9.  When COM makes this class, we will ignore it, and access it only indirectly using this pointer.  We will cover how the class is created in a moment.

這是一個指向Direct3D的長指針變量。這意思就是說我們將創建一個叫iDirect3D9的類。當然我們不需要?jiǎng)邮郑?/span>COM會自己創建它，而我們只要通過這個指針間接訪問那個類。稍后我們會講到這個類具體是怎樣被創建的。



LPDIRECT3DDEVICE9 d3ddev;

The Direct3D Device interface holds all the information pertaining to the graphics drivers, the video card, and everything else having to do with the hardware side of graphics.  This is a pointer to the class that stores all this information.

Direct3D Device接口里保留著所有與圖形驅動，顯卡，以及其他什么東西相關的信息。而我們定義的這個指針指向Direct3D Device類存儲所有的信息。



2. 創建一個函數來初始化Direct3D和創建Direct3D Device

The first step to actually coding Direct3D is to create the interface and initialize the graphics device.  This is done using two functions and a struct containing graphics device information.  Let's take a look at this function here, then go over its parts.  I didn't bother to bold the new parts, because the entire thing is new.

實際上Direct3D編碼的第一步是建立界面和初始化圖形設備。我們用兩個函數加一個包含圖形設備信息的結構體來完成這一步。讓我們看看這個函數,然后再分析部分代碼。我不想去加粗新的部分,因?yàn)槟且徽麎K都是新的。





if the comments here are good enough for you, excellent.  Otherwise, I've described each of these commands below.

如果這些注釋足夠你看懂程序，那TM太好了，恭喜你，你可以跳過下面的詳細解釋了



d3d = Direct3DCreate9(D3D_SDK_VERSION);

This is where the fun begins.  This is the first Direct3D function you will run.  It's primary purpose is to create the Direct3D interface.  The return value is the address of the interface created, and so we will store this address in the pointer we created earlier, d3d.

這是個有趣的開始。這是你將要運行的第一個Direct3D函數。它的主要目的是創建Direct3D接口。它的返回值是創建的借口的地址，于是我們就能把這個地址存儲在名為d3d的指針中。



Then there is the parameter.  This parameter is always the same: D3D_SDK_VERSION.  Why is this?  Well, it really only matters for compatibility on other machines.  When a later release of DirectX is published, the users will usually have varying levels of DirectX upgrades.  This tells the user's DirectX which version you developed your game for.  The user's DirectX can then look back and properly execute your program without implementing the upgrades that have occurred since then.  Kinda useful, eh?

然后你發現，哎呀，這還有個參數呢。是的是的，我沒忘記它，這個參數他永遠是這個單詞“D3D_SDK_VERSION”，這是為神馬呢？原來，他是為了保證在不同機器上的兼容性。當一個更新版本的DirectX推出以后，用戶一般會有不同程度的升級。這個常量會告訴用戶的DirectX你寫的程序是哪個版本的。然后用戶的DirectX就不會調用升級后的新特性以便能夠正確執行你的程序。



In the version of Direct3D 9c, this value returns 32.  Previous versions would return different values, causing DirectX to function in different ways.  Note that you should not change this value, as it will cause confusion and is not really needed anyway.  Just use D3D_SDK_VERSION, and everything will work out all right.

在DirectX 9c中，這個返回值是32。更早的版本會返回其他值。造成DirectX調用不同的函數。注意，你不能改變這個值，這樣會引起天下大亂而且你也不需要這么做。老老實實就就用“D3D_SDK_VERSION”吧，代表國家感謝你。



D3DPRESENT_PARAMETERS d3dpp;

There are certain factors involved in both beginning and advanced game programming which require certain information to be fed into the graphics device from the start.  There are plenty of these, but we will only go into three of them here.  For now, D3DPRESENT_PARAMETERS is a struct whose members will contain information about the graphics device.  We will go over the ones we use here and cover new members as they come up throughout the tutorial.

在初級和高級游戲編程,有一些因素從一開始就需要饋入圖形設備。這樣的因素有許多,但是我們只需要三個。在這里,D3DPRESENT_PARAMETERS是一個結構體，它的成員包含了圖形設備的信息。下面我們將來了解那些我們現在用到的以及后面將要用到的貫穿這個教程始終的新成員。



ZeroMemory(&d3dpp, sizeof(d3dpp));

We use ZeroMemory() to quickly initialize the entire d3dpp struct to NULL.  That way we don't have to go through every member of the struct and set them individually.

我們ZeroMemory

這個函數來快速初始化我們的結構體d3dpp，將其值置為空。



d3dpp.Windowed = TRUE;

When we run Direct3D in a window like we are now, this value is set to TRUE.  Otherwise, it is set to false.  Later, when we make our window full-screen, we will change this value to FALSE.

Note:  There are other changes to make when an application goes full-screen.  Changing this one value will not make your application full-screen, unfortunately.  Patience until the next lesson.

當我們像現在這樣在窗口中運行Direct3D，把它的值設為TRUE。否則，它會被設置為false。之后，當我們要讓我們的窗口全屏化，我們需將改變這個值設置為false。

注意：要想讓程序全屏。僅僅改變這一個值可不行，欲知具體如何，請聽下節課分解。



d3dpp.SwapEffect = D3DSWAPEFFECT_DISCARD;

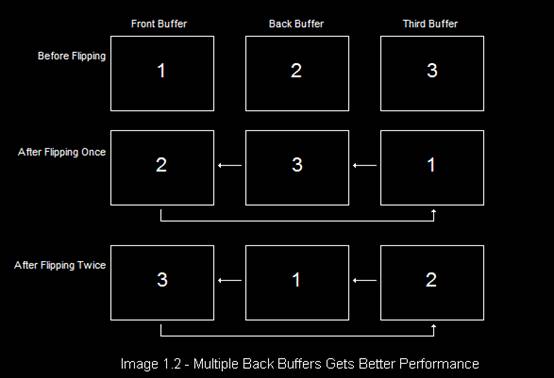

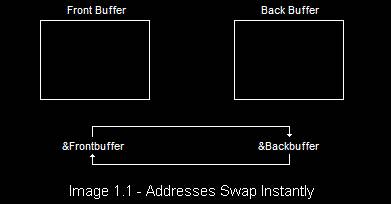

Before, we talked about swap chains as the method Direct3D uses to change images on the screen.  However, we get to pick which type of swap chain is used.  There are three different kinds.

首先，我們討論了交換鏈----也就是使用Direct3D改變屏幕上的圖像的方法。然而，交換鏈?zhǔn)怯泻芏喾N的，我們需要選擇其中一種來使用。這里有三種。



[Table 1.1 - d3dpp.SwapEffect Flags]

So which one to use?  Throughout this tutorial I will be using D3DSWAPEFFECT_DISCARD.  The only exception to this will be at some later date when I add additional tutorials on various effects that use the other two methods.

那我們應該用哪一個呢？這個教程自始至終我都會選擇D3DSWAPEFFECT_DISCARD。唯一的例外將在以后的某天，我用一個額外的教程講述其他兩種交換鏈的影響的時候。



d3dpp.hDeviceWindow = hWnd;

This value sets the handle to the window Direct3D should use.  We'll just use the same hWnd we've always been using.

這個值用于設定Direct3D的窗口句柄。我們會始終使用“hWnd”這個單詞。



d3d->CreateDevice()

This is a big function, but in actual fact, it is quite simple.  Most of the parameters will probably stay the same in every game you write.

What this function does is create a graphics device interface.  What this means is a new class will be created from which you will handle all the graphics you need.  Notice that this function is part of the d3d class.  Most of the functions you use in Direct3D will come from here, so we give the pointer a rather simple name, d3ddev, as seen before.

Here is this function's prototype:

這是一個很大的函數，但實際上，它還很簡單的。大多數參數可能會總是一樣，在你寫的每個游戲中。

這個函數的作用是創建一個圖形設備接口。這意味著一個新的類將被創建，從從您可以進行所有你需要的圖形處理。注意，這個函數是D3D的類的一部分。你在Direct3D中使用的大多數函數將來自這里，所以我們給這個指針一個相當簡單的名稱，d3ddev，正如我們前面見過的那樣。

下面是這個函數的原型：



現在讓我們來看看這個函數的參數。他們都很簡單,那么這將會很快。

 UINT Adapter,

This is an unsigned integer that stores a value indicating what graphics adapter, or video card, Direct3D should use.  We could get detailed here, and try to find the better graphics card, but we'll let Direct3D take care of that for us (because in most cases there's only one).  To tell Direct3D that it needs to decide, we put into this parameter the value D3DADAPTER_DEFAULT, indicating the default graphics card.

這是一個無符號整數，用于存儲一個值來指明我們要使用哪些圖形適配器，或視頻卡，Direct3D。在這里我們可以得到詳細的，并試圖找到更好的圖形卡，但我們會讓Direct3D盡量小心（因?yàn)樵诖蠖鄶?shù)情況下只有一個）。要告訴Direct3D它進行決斷需要的信息，我們把這個參數的值設為D3DADAPTER_DEFAULT，表示默認的圖形卡。



D3DDEVTYPE DeviceType,

While there are four possible values for this parameter, we are only going to be concerned with one of them, and stay away from the others until later.  The one we will use is D3DDEVTYPE_HAL.

D3DDEVTYPE_HAL tells Direct3D to use what is called the Hardware Abstraction Layer.  The Hardware Abstraction Layer, or HAL, is used to indicate that Direct3D should be using hardware to process graphics (and we would use...what else?).  If for some reason our graphics device cannot use hardware to handle something, that something will be rendered by software instead.  This is done automatically, but probably won't be done, considering the capabilities of modern cards.

雖然有四個可能的值，但我們只打算用其中的一個方面，并且一直用它。他就是D3DDEVTYPE_HAL。
D3DDEVTYPE_HAL告訴Direct3D使用所謂的硬件抽象層。硬件抽象層，或者簡稱HAL，是用來指示Direct3D應該用硬件來處理圖像（不然我們還能用什么？）。如果由于某種原因，我們的圖形設備無法使用硬件來處理的東西，這東西會被軟件渲染來代替。這都是自動完成的，但也可能不會這么做，考慮到現代卡的性能。



HWND hFocusWindow,

This is the handle to our window.  We can just put 'hWnd' in here as we passed the value from WinMain().

這是我們的窗口句柄。我們可以把'hWnd'放在這里，正如我們從WinMain（）中傳遞了這個值一樣。



DWORD BehaviorFlags,

While there are plenty of values we can store in this parameter, there are only three we will cover just now.  They are D3DCREATE_SOFTWARE_VERTEXPROCESSING, D3DCREATE_MIXED_VERTEXPROCESSING and D3DCREATE_HARDWARE_VERTEXPROCESSING.  These three values are fairly self-explanatory.  The software one indicates that all 3D calculations should be done with software, the hardware one with hardware, and the mixed one using a combination of both, depending on which Direct3D sees fit.  We will use the software value for compatibility, but you can experiment with these as you desire.  At first you will notice no difference, but as we move into advanced topics, you may start to see some differences appear.

盡管有很多的值供我們存儲在此參數中，但是我們只會用其中三個。他們是D3DCREATE_SOFTWARE_VERTEXPROCESSING，D3DCREATE_MIXED_VERTEXPROCESSING和D3DCREATE_HARDWARE_VERTEXPROCESSING。這三個值是相當顧名思義，不言自明，一目了然。第一個表示，所有的3D計算應用軟件實現，第三個完全使用硬件，而第二個兩者都用，這取決于Direct3D認為哪個在這個工作上哪者更合適。為了兼容性我們會使用第一個值，但是你個人高興的話，試試別的我也不介意。起初，你會發現沒有什么區別，但是當我們玩到更深層次的時候，你可能會開始看到一些不同之處。



D3DPRESENT_PARAMETERS *pPresentationParameters,

This is a pointer to the d3dpp struct that we filled out earlier.  We just fill this with '&d3dpp'.

這是一個指向我們?cè)缧r(shí)候定義的d3dpp結構體的指針。我們只要在這寫上'＆d3dpp'。



IDirect3DDevice9 **ppReturnedDeviceInterface

This is a pointer to a pointer to the graphics device interface (if you can understand that).  Earlier in the program we defined this pointer as d3ddev, so we will put '&d3ddev' in this parameter.

And that's it!  You have an entire function using Direct3D.  However, if you run this program (and you should not), you will find that absolutely nothing different occurs.  All we have done at this point is prepare for action.  Now let's have some action!

這是一個指向圖形設備接口（如果你能理解）的指針。早些時候，我們?cè)诔绦蛑卸x的這個d3ddev指針，所以我們會在這使用參數'＆d3ddev'。
就是這樣！然后你就可以使用Direct3D的完整功能。但是，如果你運行這個程序（其實你不應該這么做），你會發現，絕對沒有什么不同的發生。所有我們?cè)谶@一點上做的準備動作。現在，讓我們有一些行動！



3.  Create a function to render a frame

In this function we will render a single frame.  The frame will be rather simple, and will consist of a blue background.  Of course, you can change the color if you want.  Here is the code for this function.







 There are four functions to rendering a frame, two of them big (but simple) and two of them small.  We'll go over them here.

這兒有個用來渲染幀的函數，兩個大的（但簡單），兩個小的。讓我們一起去了解他們。



d3ddev->Clear(0, NULL, D3DCLEAR_TARGET, D3DCOLOR_XRGB(0, 40, 100), 1.0f, 0)

This clears a buffer to a specific color.  In this case, we are going to clear our back buffer.  It's pretty simple.

Because most of the parameters are irrelevant at this point, we will leave most of them alone.  The first two have to do with clearing a specific area.  You will rarely need this, but will just leave them at 0 and NULL, indicating the entire back buffer is to be cleared.  The third parameter, set to D3DCLEAR_TARGET, indicates that we should clear the back buffer.  There are other types of buffers, but we want this type.  Next we have color.  The parameter is the struct D3DCOLOR, and we will use the function D3DCOLOR_XRGB() to build the color.  The next two parameters we will get into in later lessons.  For now, just set them to '1.0f' and 0.

這將清空一個特定的顏色緩沖區。在這短代碼中我們會清空我們的后緩沖區。這相當簡單。
由于大多數參數里無關緊要，所以我們不管他。前兩個負責清除特定區域。一般咱用不到，所以就給他們0和NULL，這樣整個背部緩沖區都將被清除。第三個參數“D3DCLEAR_TARGET”表明我們應該清除后備緩沖區。還有其他類型的緩沖區，但我們需要清除的就是這種類型。下一步，我們的顏色參數是D3DCOLOR結構體，我們將使用函數D3DCOLOR_XRGB（）來構建顏色。接下來的兩個參數，我們將在以后的課程了解。現在，只需將它們?cè)O(shè)置為'1 .0 f'和0。





d3ddev->BeginScene()

Next we call the function BeginScene() which tells Direct3D you are ready to start rendering.  This function needs to be called for two reasons.  First, you need to tell Direct3D that you are in control of the memory.  Second, this function does something called locking, where the buffer in the video RAM is 'locked', granting you exclusive access to this memory.  There is no guarantee that your memory will stay put and not be moved around while you are trying to work on it.  Having your memory suddenly appear somewhere else can be quite a hassle for sure.

接下來我們調用函數BeginScene（），它告訴Direct3D休息時間結束，可以開始渲染了。這個函數需要被調用的原因有兩個。首先，你需要告訴Direct3D她現在受內存管。其次，這個函數會對在視頻RAM的緩沖區進行鎖定，授予您獨家訪問此內存的權限。毫無疑問，你的內存將留在原地，不會隨意移動，而你正在試圖進行這項工作的保證。如果你的內存突然出現在別的地方可以是一個相當肯定的麻煩。



d3ddev->EndScene()

Next we call the function EndScene().  While BeginScene() locked the video memory we wanted, EndScene() unlocks it, making it available by other processes that need access to it.

Note:  Locking video RAM is slow, but required.  You should call BeginScene() and EndScene() only once per frame to save your valuable CPU ticks.

接下來，我們調用函數EndScene（）。BeginScene（）會鎖定我們想要的顯存，而EndScene（）可以對之解鎖，使得它可以被其他進程訪問。
注意：鎖定視頻RAM是很慢的，但又是必要的。你應該每幀只調用BeginScene（）和EndScene（）一次，節約寶貴的CPU資源。



d3ddev-> (NULL, NULL, NULL, NULL)

And finally we call the Present() function.  The four parameters, all set to NULL, are not going to be used in this tutorial.  Three of them have to do with the slowest method of handling the swap chain (which we don't use) and the other one has to do with presenting to a different window (which we won't need and won't go into).

最后，我們調用Present()函數。這四個都設置為NULL的參數，不會在本教程中使用。其中3個是與處理交換鏈的方法中最慢的（本教程堅決不用），而另一個是介紹到不同的窗口（我們不需要，也不會進入）。



4.  Create a function to close Direct3D

This is the last (and easiest) step to creating a Direct3D program.  We just have two steps here:

這是最后一個（最簡單）的步驟，創建一個Direct3D程序。我們只是在這里有兩個步驟:







Here, we call the Release() function from each of the two interfaces we created, d3ddev and d3d.  No parameters, nothing spectacular.  Just cleans everything up.

在這里，我們從我們創建的兩個接口調用Release（），d3ddev和D3D的每一個功能。沒有參數，沒有返回。僅僅是清理一切。



Why?  Well, let's say it would be a bad thing to do otherwise.  Basically, if you create Direct3D, but never close it, it will just keep on running in the background of the computer until your next reboot, even after the program itself closes.  Bad.  Especially bad if you have a lot of resources in your game.  Releasing these two interfaces let's everything off the hook and allows Windows to take back it's memory.

為什么呢？我得說如果不這么做請你后果自負。基本上，如果你創建了Direct3D卻從來沒有關閉它，它就會不停地在計算機后臺運行直到你重啟電腦，即使在程序本身關閉之后。特別是如果你有一堆壞的資源在你的游戲中，哦，買雷迪嘎嘎。釋放這兩個接口吧，讓一切干干凈凈，而Windows也可以收回它的內存。



The Finished Program

Wow!  That was quite a start, but it will go down from here.

Let's take a look at what we just did.  Following is the code we added to our program.  The new parts are now in bold.

哇！這僅僅還一個開始，但是我們將從這里邁出第一步。
讓我們來跑跑看我們剛剛做的程序。以下是我們的代碼。沒出現的部分會以粗體顯示。

[Show Code]

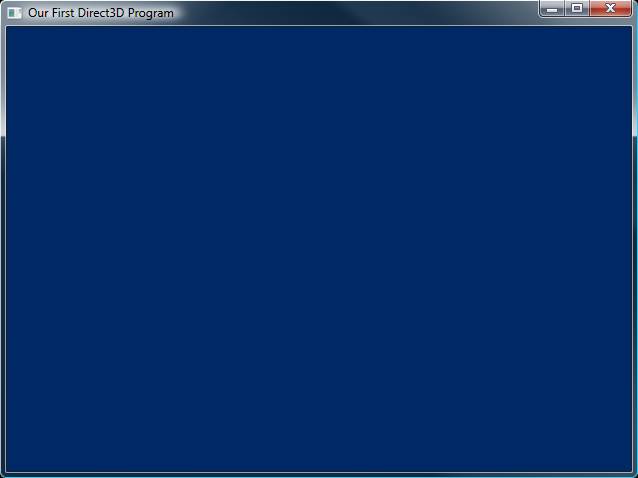

And that's it!  If you run this program you should get something like this:

那么，不出意外的話，你的程序跑起來應該像這樣：

Image 1.3 - Our First Direct3D Program

Summary

Well, it isn't much yet.  But you have begun the journey into the near-inifinite depths of 3D game programming.  You've created a window and gotten DirectX to put an image (albeit a somewhat dull image) into it.

嗯，本節課已經沒有多少了呢。但是我已經成功地把你帶進3D游戲編程的旅程，雖然現在還在入門水平。您已經成功地創建了一個窗口，并通過DirectX成功嵌入一幅圖像（雖然這圖像實在很無聊）。

As an exercise, see if you can get your program to change colors while running.  Try to make it fade from blue to black, then to blue again, and repeat.

嘗試一下這個練習吧，看看你能不能在程序運行時改變它的顏色。嘗試做個藍黑漸變，然后再為藍色，反復如此。

So we haven't got a game running yet, but we have enough concepts to start.  So with that, let's dive right in and start your next step (which is rather short, btw)!

事實上我們還有沒有一個游戲運行，但我們有足夠的基礎概念。千里之行，始于足下，各位看官切記，切記！

Next Lesson:  Going Fullscreen

下一課：走向全屏
