經過長時間的，懶懶散散地緊張敲打，BoxCatcher的早期設想基本算實現了！做個小結，這樣－－放假就可以一直WOW了，哈哈。。。
先上界面看看，（是的，這圖片有點弱智，沒法子啊，咱不會做圖啊，只能直接google這幾個png了。。。）

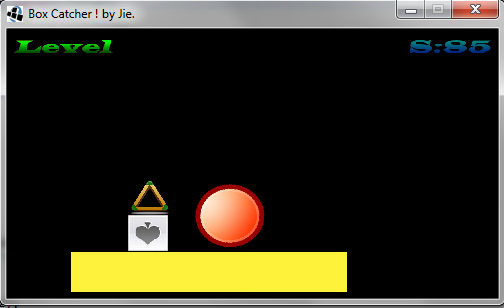

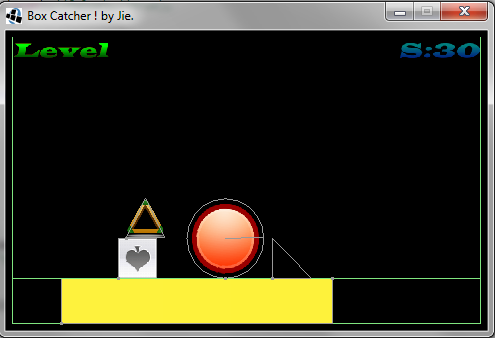

左右兩個截圖分別是運行時模式和調試模式下的界面。可以看出調試模式下，有個三角形未貼圖，那么在運行時就不可見了。
如下顯示，目前應用支持五種形狀，即五個基本的‘元素’（Box), 相同的形狀如果使用不同的貼圖，則可以產生無數的‘物體’（BoxActor）。
public enum BoxShape {
RECTANGLE, CIRCLE, TRIANGLE, LINE, RIGHT_TRIANGLE
}
另外一個可以show下的是‘數據’系統。我們知道GAME多數都是分關卡（Stage）的，那么每個關卡都有自己的數據，如果為每個關卡都實現個界面，那就有點‘笨’了，因此在設計是，關卡的顯示和數據是分開的（這個是必須的。。。）
想著以前

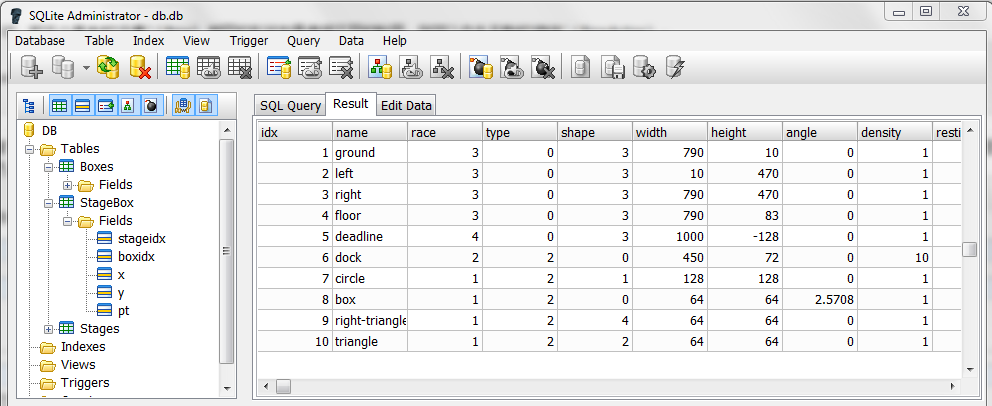

破解WOW數據的經歷，就有了下面的數據表了。。。
有人會像我這樣寫這些‘蛋疼’的SQL語句嗎。。。沒法子，誰叫咱有點‘輕微’的‘宏偏執’...
private void createTables() throws SQLException
{
String sql = "CREATE TABLE IF NOT EXISTS " + TABLE_NAME_BOXES + " ("
+ TABLE_COLUMN_INDEX + " INTEGER PRIMARY KEY,"
+ TABLE_COLUMN_NAME + " TEXT,"
+ TABLE_COLUMN_RACE + " INTEGER,"
+ TABLE_COLUMN_TYPE + " INTEGER,"
+ TABLE_COLUMN_SHAPE + " INTEGER,"
// + TABLE_COLUMN_X + " INTEGER,"
// + TABLE_COLUMN_Y + " INTEGER,"
+ TABLE_COLUMN_WIDTH + " INTEGER,"
+ TABLE_COLUMN_HEIGHT + " INTEGER,"
+ TABLE_COLUMN_ANGLE + " REAL,"
+ TABLE_COLUMN_DENSITY + " REAL,"
+ TABLE_COLUMN_RESTITUTION + " REAL,"
+ TABLE_COLUMN_FRICTION + " REAL,"
+ TABLE_COLUMN_FILTERBITS + " INTEGER,"
+ TABLE_COLUMN_TEXTUREINDEX + " INTEGER,"
+ TABLE_COLUMN_ANIMATIONINDEX + " INTEGER"
+ ");";
execSQL(sql);
sql = "CREATE TABLE IF NOT EXISTS " + TABLE_NAME_STAGES + " ("
+ TABLE_COLUMN_INDEX + " INTEGER PRIMARY KEY,"
+ TABLE_COLUMN_TITLE + " TEXT,"
+ TABLE_COLUMN_MAXTIME + " INTEGER,"
+ TABLE_COLUMN_GRAVITY_X + " REAL,"
+ TABLE_COLUMN_GRAVITY_Y + " REAL"
+ ");";
execSQL(sql);
sql = "CREATE TABLE IF NOT EXISTS " + TABLE_NAME_STAGEBOX + " ("
+ TABLE_COLUMN_STAGEINDEX + " INTEGER,"
+ TABLE_COLUMN_BOXINDEX + " INTEGER,"
+ TABLE_COLUMN_X + " INTEGER,"
+ TABLE_COLUMN_Y + " INTEGER,"
+ TABLE_COLUMN_PRESENTTIME + " INTEGER"
+ ");";
execSQL(sql);
}
剛敲好這個Demo，不多寫了，下面是其中主要的一個類－－BoxActor，其是用于處理顯示每個物體的類，每個BoxActor都由一個具體的BoxActor實例處理。
package jie.java.android.boxcatcher;
import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.graphics.g2d.Animation;
import com.badlogic.gdx.graphics.g2d.SpriteBatch;
import com.badlogic.gdx.graphics.g2d.TextureRegion;
import com.badlogic.gdx.math.MathUtils;
import com.badlogic.gdx.math.Vector2;
import com.badlogic.gdx.physics.box2d.Body;
import com.badlogic.gdx.physics.box2d.BodyDef;
import com.badlogic.gdx.physics.box2d.CircleShape;
import com.badlogic.gdx.physics.box2d.EdgeShape;
import com.badlogic.gdx.physics.box2d.FixtureDef;
import com.badlogic.gdx.physics.box2d.PolygonShape;
import com.badlogic.gdx.physics.box2d.BodyDef.BodyType;
import com.badlogic.gdx.physics.box2d.Shape;
import com.badlogic.gdx.physics.box2d.World;
import com.badlogic.gdx.scenes.scene2d.Actor;
public class BoxActor extends Actor {
public enum BoxShape {
RECTANGLE, CIRCLE, TRIANGLE, LINE, RIGHT_TRIANGLE
}
protected World world = null;
protected Body body = null;
protected StageData.Box box = null;
protected TextureRegion texture = null;
protected Animation animation = null;
protected float textureWidth = 0.0f;
protected float textureHeight = 0.0f;
protected BoxContactListener contactListener = null;
protected BoxDestroyListener destroyListener = null;
protected BoxTouchListener touchListener = null;
public BoxActor(World world, StageData.Box box) {
super(box.name);
this.world = world;
this.box = box;
init();
makeBox();
}
protected void init() {
x = box.x;
y = box.y;
width = box.width;
height = box.height;
rotation = MathUtils.radiansToDegrees * box.angle;
scaleX = 1.0f;
scaleY = 1.0f;
switch(box.shape) {
case RECTANGLE: {
originX = box.width / 2.0f;
originY = box.height / 2.0f;
textureWidth = box.width;
textureHeight = box.height;
break;
}
case CIRCLE: {
originX = box.width / 2.0f;
originY = box.width / 2.0f;
textureWidth = box.width;
textureHeight = box.width;
break;
}
case TRIANGLE:
case RIGHT_TRIANGLE: {
originX = 0;//-box.width / 2.0f;
originY = 0;//-box.height;// / 2.0f;// / 2.0f;
textureWidth = box.width;
textureHeight = box.height;
break;
}
case LINE: {
originX = box.width;
originY = box.height;// / 2.0f;
textureWidth = 0.0f;
textureHeight = 0.0f;
break;
}
default: {
originX = box.width;
originY = box.height;// / 2.0f;
textureWidth = 0.0f;
textureHeight = 0.0f;
break;
}
}
}
//
protected void makeBox() {
BodyDef def = new BodyDef();
def.type = box.type;
def.angle = box.angle;
def.position.set(getCenter());
//def.angularDamping = 1.0f;
def.linearDamping = 0.0f;
Shape shape = makeShape();
FixtureDef fd = new FixtureDef();
fd.shape = shape;
fd.restitution = box.restitution;
fd.density = box.density;
fd.friction = box.friction;
fd.filter.categoryBits = box.filterBits;
fd.filter.maskBits = box.filterBits;
body = world.createBody(def);
body.createFixture(fd);
shape.dispose();
Gdx.app.log("tag", this.name + " body mass = " + body.getMass());
body.setUserData(this);
}
private Shape makeShape() {
switch(box.shape) {
case RECTANGLE: {
PolygonShape shape = new PolygonShape();
shape.setAsBox(box.width / Global.WORLD_SCALE / 2, box.height / Global.WORLD_SCALE / 2);
return shape;
}
case TRIANGLE: {
PolygonShape shape = new PolygonShape();
shape.set(new Vector2[] { new Vector2((box.width / 2) / Global.WORLD_SCALE, box.height / Global.WORLD_SCALE)
, new Vector2(0.0f, 0.0f)
, new Vector2(box.width / Global.WORLD_SCALE, 0.0f) } );
return shape;
}
case CIRCLE: {
CircleShape shape = new CircleShape();
shape.setRadius(box.width / 2 / Global.WORLD_SCALE);
return shape;
}
case LINE: {
EdgeShape shape = new EdgeShape();
shape.set(box.x / Global.WORLD_SCALE, box.y / Global.WORLD_SCALE
, box.width / Global.WORLD_SCALE, box.height / Global.WORLD_SCALE);
return shape;
}
case RIGHT_TRIANGLE: {
PolygonShape shape = new PolygonShape();
shape.set(new Vector2[] { new Vector2(0.0f, box.height / Global.WORLD_SCALE)
, new Vector2(0.0f, 0.0f)
, new Vector2(box.width / Global.WORLD_SCALE, 0.0f) } );
return shape;
}
default:
return null;
}
}
protected Vector2 getCenter() {
switch(box.shape) {
case RECTANGLE: {
return new Vector2((box.x + box.width / 2) / Global.WORLD_SCALE, (box.y + box.height / 2) / Global.WORLD_SCALE);
}
case CIRCLE: {
return new Vector2((box.x + box.width / 2) / Global.WORLD_SCALE, (box.y + box.width / 2) / Global.WORLD_SCALE);
}
case TRIANGLE:
case RIGHT_TRIANGLE: {
return new Vector2((box.x) / Global.WORLD_SCALE, (box.y) / Global.WORLD_SCALE);
}
case LINE: {
return new Vector2(0, 0);
}
default: {
return new Vector2(0, 0);
}
}
}
@Override
public void act(float delta) {
if(this.isMarkedToRemove()) {
if(destroyListener != null && !destroyListener.onDestory()) {
return;
}
this.destroy();
return;
}
//world.step(1/30f, 3, 3);
box.stateTime += delta;
update(delta);
super.act(delta);
}
protected void update(float delta) {
if(body == null)
return;
if(animation != null) {
setTexture(animation.getKeyFrame(box.stateTime, true));
}
//if(texture != null) {
rotation = MathUtils.radiansToDegrees * body.getAngle();
switch(box.shape) {
case RECTANGLE: {
x = body.getPosition().x * Global.WORLD_SCALE - box.width / 2;// * MathUtils.cos(rotation);
y = body.getPosition().y * Global.WORLD_SCALE - box.height / 2;// * MathUtils.sin(rotation);// / MathUtils.sin(rotation);
break;
}
case CIRCLE: {
x = body.getPosition().x * Global.WORLD_SCALE - box.width / 2;// * 2;// * MathUtils.cos(rotation);
y = body.getPosition().y * Global.WORLD_SCALE - box.width / 2;// * 2;// * MathUtils.sin(rotation);// / MathUtils.sin(rotation);
break;
}
case TRIANGLE:
case RIGHT_TRIANGLE: {
x = body.getPosition().x * Global.WORLD_SCALE;// - box.width / 2;// * MathUtils.cos(rotation);
y = body.getPosition().y * Global.WORLD_SCALE;// - box.height / 2 ;// * MathUtils.sin(rotation);// / MathUtils.sin(rotation);
break;
}
case LINE: {
x = body.getPosition().x * Global.WORLD_SCALE;// - box.width / 2;// * MathUtils.cos(rotation);
y = body.getPosition().y * Global.WORLD_SCALE;// - box.height / 2 ;// * MathUtils.sin(rotation);// / MathUtils.sin(rotation);
break;
}
default: {
x = body.getPosition().x * Global.WORLD_SCALE;// - box.width / 2;// * MathUtils.cos(rotation);
y = body.getPosition().y * Global.WORLD_SCALE;// - box.height / 2 ;// * MathUtils.sin(rotation);// / MathUtils.sin(rotation);
}
}
//}
//Gdx.app.log("tag", "body x = " + body.getPosition().x + " y = " + body.getPosition().y);
}
@Override
public void draw(SpriteBatch batch, float parentAlpha) {
batch.setColor(color.r, color.g, color.b, color.a * parentAlpha);
if(texture != null) {
if(scaleX == 1.0f && scaleY == 1.0f && rotation == 0.0f) {
batch.draw(texture, x, y, textureWidth, textureHeight);
}
else {
batch.draw(texture, x, y, originX, originY, textureWidth, textureHeight, scaleX, scaleY, rotation);
}
}
}
@Override
public Actor hit(float x, float y) {
//Vector2 tmp = new Vector2(x, y);
//this.toLocalCoordinates(tmp);
return (x > 0 && x < width && y > 0 && y < height) ? this : null;
}
@Override
public boolean touchDown(float x, float y, int pointer) {
if(touchListener != null) {
return touchListener.onTouchDown(this, x, y, pointer);
}
else {
return super.touchDown(x, y, pointer);
}
}
@Override
public void touchUp(float x, float y, int pointer) {
if(touchListener != null) {
touchListener.onTouchUp(this, x, y, pointer);
}
else {
super.touchUp(x, y, pointer);
}
}
@Override
public void touchDragged(float x, float y, int pointer) {
if(touchListener != null) {
touchListener.onTouchDragged(this, x, y, pointer);
}
else {
super.touchDragged(x, y, pointer);
}
}
@Override
public boolean touchMoved(float x, float y) {
if(touchListener != null) {
if(hit(x, y) != null) {
return touchListener.onTouchMoved(this, x, y);
}
}
return super.touchMoved(x, y);
}
public void setTexture(TextureRegion texture) {
if(this.texture == texture)
return;
this.texture = texture;
}
public void setAnimation(Animation animation) {
if(this.animation == animation)
return;
this.animation = animation;
}
public void applyForce(Vector2 force, Vector2 point) {
if(body != null) {
body.applyForce(force, point);
}
}
public void applyForceToCenter(Vector2 force) {
if(body != null) {
body.applyForceToCenter(force);
}
}
public void applyForceToCenter(float forceX, float forceY) {
if(body != null) {
body.applyForceToCenter(forceX, forceY);
}
}
public void applyVelocity(Vector2 vel) {
if(body != null) {
body.setLinearVelocity(vel);
}
}
public void applyVelocity(float x, float y) {
if(body != null) {
body.setLinearVelocity(x, y);
}
}
public void setContactListener(BoxContactListener listener) {
contactListener = listener;
}
public void setDestroyListener(BoxDestroyListener listener) {
destroyListener = listener;
}
public void SetTouchListener(BoxTouchListener listener) {
touchListener = listener;
}
protected void destroy() {
if(body != null) {
world.destroyBody(body);
body = null;
}
super.remove();
//super.markToRemove(true);
}
public StageData.Box getBox() {
box.x = body.getPosition().x;
box.y = body.getPosition().y;
box.angle = body.getAngle();
return box;
}
public int getId() {
return box.id;
}
}
<---- 問題分割線 ---->
忽然想起，這里是cppblog.com，而這些都是JAVA代碼，而且還是Android相關的。。。似乎有搗亂的嫌疑。。。原諒咱吧，誰叫咱就這一個blog呢。。。再說了，哪個敲字的，不會個百八十種語言呢，是吧？
另外，libgdx真的好用，使得android的game寫起來快了很多。。。
