ACE中的流包裝提供面向連接的通信。流數據傳輸包裝類包括ACE_SOCK_Stream和ACE_LSOCK_Stream，它們分別包裝TCP/IP和UNIX域socket協議數據傳輸功能。連接建立類包括針對TCP/IP的ACE_SOCK_Connector和ACE_SOCK_Acceptor，以及針對UNIX域socket的ACE_LSOCK_Connector和ACE_LSOCK_Acceptor。
      Acceptor類用于被動地接受連接（使用BSD accept()調用），而Connector類用于主動地建立連接（使用BSD connect()調用）。
      下面的例子演示接收器和連接器是怎樣用于建立連接的。該連接隨后將用于使用流數據傳輸類來傳輸數據。

server端代碼：
// 環境VC6.0+ACE5.4.2
// proj:ACE stream server
// date:07-7-24
// robin
//

#include "stdafx.h"

#include "ace/Log_Msg.h"
#include "ace/Time_Value.h"
#include "ace/OS.h"

#include "ace/SOCK_Acceptor.h"
#include "ace/SOCK_Stream.h"

#define SIZE_DATA 18
#define SIZE_BUF 1024
#define NO_ITERATIONS 5

class Server
{
public:
 Server (int port) : server_addr_(port),peer_acceptor_(server_addr_)
 {
  data_buf_ = new char[SIZE_BUF];
 }

 //Handle the connection once it has been established. Here the
 //connection is handled by reading SIZE_DATA amount of data from the
 //remote and then closing the connection stream down.

 int handle_connection()
 {
  // Read data from client
  for(int i=0;i<NO_ITERATIONS;i++)
  {
   int byte_count=0;
   if( (byte_count = new_stream_.recv_n(data_buf_, SIZE_DATA, 0) ) == -1 )
    ACE_ERROR ((LM_ERROR, "%p\n", "Error in recv"));
   else
   {
    data_buf_[byte_count]=0;
    ACE_DEBUG((LM_DEBUG,"Server received %s \n",data_buf_));
   }
  }

  // Close new endpoint
  if (new_stream_.close () == -1)
   ACE_ERROR ((LM_ERROR, "%p\n", "close"));
  return 0;
 }

 //Use the acceptor component peer_acceptor_ to accept the connection
 //into the underlying stream new_stream_. After the connection has been
 //established call the handle_connection() method.

 int accept_connections ()
 {
  if (peer_acceptor_.get_local_addr (server_addr_) == -1)
   ACE_ERROR_RETURN ((LM_ERROR,"%p\n","Error in get_local_addr"),1);
  ACE_DEBUG ((LM_DEBUG,"Starting server at port %d\n",
   server_addr_.get_port_number ()));

  // Performs the iterative server activities.

  while(1)
  {
   ACE_Time_Value timeout (ACE_DEFAULT_TIMEOUT);
   if (peer_acceptor_.accept(new_stream_, &client_addr_, &timeout)== -1)
   {
    ACE_ERROR ((LM_ERROR, "%p\n", "accept"));
    continue;
   }
   else
   {
    ACE_DEBUG((LM_DEBUG,
     "Connection established with remote %s:%d\n",
     client_addr_.get_host_name(),client_addr_.get_port_number()));

    //Handle the connection
    handle_connection();
   }
  }
 }

private:
 char *data_buf_;
 ACE_INET_Addr server_addr_;
 ACE_INET_Addr client_addr_;
 ACE_SOCK_Acceptor peer_acceptor_;
 ACE_SOCK_Stream new_stream_;
};

int main (int argc, char *argv[])
{
 if(argc<2)
 {
  ACE_ERROR((LM_ERROR,"Usage %s <port_num>", argv[0]));
  ACE_OS::exit(1);
 }

// char *ip;
// ip = new char[strlen("192.168.1.160")];
// Server server(ACE_OS::atoi(ip));  //argv[1])

 Server server(ACE_OS::atoi(argv[1]));
 server.accept_connections();
 return 0;
}

client端：
// proj:ACE stream client
// client
// date:7-24
// robin

#include "stdafx.h"

//******additional*******//
#include "ace/Log_Msg.h"  //ACE_ERROR ACE_DEBUG
#include "ace/Time_Value.h"  // ACE_Time_Value
#include "ace/OS.h"    // ACE_OS::atoi exit
//******additional*******//

#include "ace/SOCK_Connector.h"
#include "ace/INET_Addr.h"

#define SIZE_BUF 128
#define NO_ITERATIONS 5

class Client
{
public:
 Client(char *hostname, int port):remote_addr_(port,hostname)
 {
  data_buf_="Hello from Client";
 }

 //Uses a connector component `connector_’ to connect to a
 //remote machine and pass the connection into a stream
 //component client_stream_
 int connect_to_server()
 {
  // Initiate blocking connection with server.
  ACE_DEBUG ((LM_DEBUG, "(%P|%t) Starting connect to %s:%d\n",
   remote_addr_.get_host_name(),remote_addr_.get_port_number()));
  if (connector_.connect (client_stream_, remote_addr_) == -1)
   ACE_ERROR_RETURN ((LM_ERROR,"(%P|%t) %p\n","connection failed"),-1);
  else
   ACE_DEBUG ((LM_DEBUG,"(%P|%t) connected to %s\n",
   remote_addr_.get_host_name ()));
  return 0;
 }

 //Uses a stream component to send data to the remote host.
 int send_to_server()
 {
  // Send data to server
  for(int i=0;i<NO_ITERATIONS; i++)
  {
   if (client_stream_.send_n (data_buf_,
    ACE_OS::strlen(data_buf_)+1, 0) == -1)
   {
    ACE_ERROR_RETURN ((LM_ERROR,"(%P|%t) %p\n","send_n"),0);
    break;
   }
  }
  //Close down the connection
  close();
 }

 //Close down the connection properly.
 int close()
 {
  if (client_stream_.close () == -1)
   ACE_ERROR_RETURN ((LM_ERROR,"(%P|%t) %p\n","close"),-1);
  else
   return 0;
 }
private:
 ACE_SOCK_Stream client_stream_;
 ACE_INET_Addr remote_addr_;
 ACE_SOCK_Connector connector_;
 char *data_buf_;
};

int main(int argc, char* argv[])
{
 if(argc<3)
 {
  ACE_DEBUG((LM_DEBUG,"Usage %s <hostname> <port_number>\n", argv[0]));
  ACE_OS::exit(1);
 }

 Client client(argv[1],ACE_OS::atoi(argv[2]));
 client.connect_to_server();
 client.send_to_server();
 return 0;
}

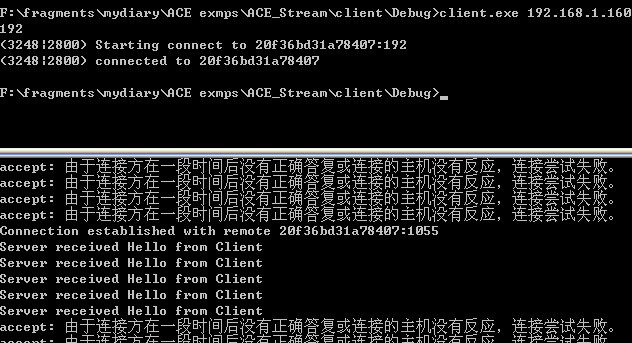

運行結果：
cmd里到exe目錄下，先啟動服務端server.exe 192.168.1.160
如圖1：

正在輪詢等待。

再到client服務端，同樣的方法
運行命令行參數格式 client.exe 192.168.1.160 192
 解析：ACE_DEBUG((LM_DEBUG,"Usage %s <hostname> <port_number>\n", argv[0]));
         命令行參數為 <hostname><port> = <192.168.1.160><192>
         端口是由圖1的第二行顯示，不是自己設定的。
如圖2：
