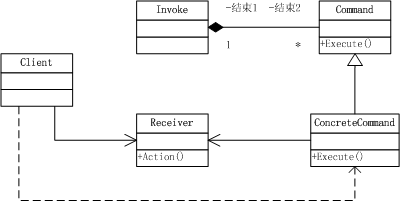

命令模式（Command）的目標是將一個請求封裝成一個對象，因此可以參數化多個客戶的不同請求，將請求排除，記錄請求日志，并支持撤消操作。 結構圖如下：
其實現思想是將一個請求封裝到一個類中（Command），再提供接收對象（Receiver），最后Command命令由Invoker調用。
以一個電燈開關為例，命令的執行、不執行相對于開關的打開、關閉操作，由開關發出命令，電燈接收命令，結構圖如下：
實現代碼：
//Light.h
class Light
{
public:
Light();
virtual ~Light();
void TurnOn();
void TurnOff();
};
//Light.cpp
#include "stdafx.h"
#include "Light.h"
#include <iostream>
using namespace std;
Light::Light()
{
}
Light::~Light()
{
}
void Light::TurnOn()
{
cout << "電燈打開了" << endl;
}
void Light::TurnOff()
{
cout << "電燈關閉了" << endl;
}
//Command.h
class Command
{
public:
virtual ~Command();
virtual void Execute() = 0;
virtual void UnExecute() = 0;
protected:
Command();
};
//Command.cpp
#include "stdafx.h"
#include "Command.h"
Command::Command()
{
}
Command::~Command()
{
}
//LightCommand.h
#include "Command.h"
class Light;
class LightCommand : public Command
{
public:
LightCommand(Light*);
virtual ~LightCommand();
void Execute();
void UnExecute();
private:
Light* m_pLight;
};
//LightCommand.cpp
#include "stdafx.h"
#include "LightCommand.h"
#include "Light.h"
LightCommand::LightCommand(Light* pLight)
{
m_pLight = pLight;
}
LightCommand::~LightCommand()
{
if(m_pLight != NULL)
{
delete m_pLight;
m_pLight = NULL;
}
}
void LightCommand::Execute()
{
m_pLight->TurnOn();
}
void LightCommand::UnExecute()
{
m_pLight->TurnOff();
}
//Switch.h
class Command;
class Switch
{
public:
Switch(Command*);
virtual ~Switch();
void Open();
void Close();
private:
Command* m_pCommand;
};
//Switch.cpp
#include "stdafx.h"
#include "Switch.h"
#include "Command.h"
Switch::Switch(Command* pCommand)
{
m_pCommand = pCommand;
}
Switch::~Switch()
{
}
void Switch::Open()
{
m_pCommand->Execute();
}
void Switch::Close()
{
m_pCommand->UnExecute();
}
//main.cpp
#include "stdafx.h"
#include "Switch.h"
#include "Light.h"
#include "LightCommand.h"
int main(int argc, char* argv[])
{
Light* pLight = new Light;
Command* pCommand = new LightCommand(pLight);
Switch* pSwitch = new Switch(pCommand);
pSwitch->Open();
pSwitch->Close();
return 0;
}
最后輸出為：
電燈打開了
電燈關閉了
